# ADS INTERNATIONAL, INC.
ADS-1000
Data bus: 32-bit EISA
Size: Three/quarter-length, full-height card
Hard drive Up to 21 SCSI devices
supported:
Floppy drives None
supported:

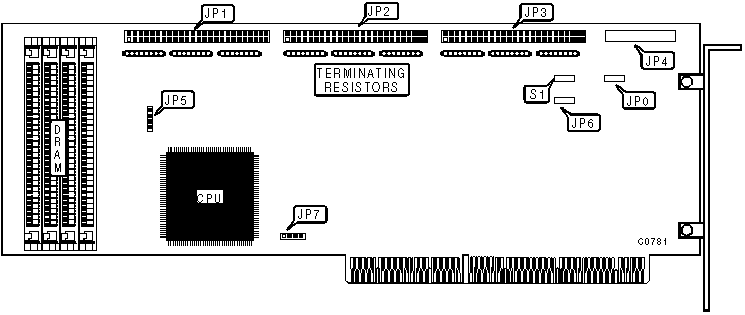

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|------------------------------------------+-----------------|
| 50-pin SCSI interface - channel 3 | JP1 |
|------------------------------------------+-----------------|
| 50-pin SCSI interface - channel 2 | JP2 |
|------------------------------------------+-----------------|
| 50-pin SCSI interface - channel 1 | JP3 |
|------------------------------------------+-----------------|
| 4-pin connector - drive active LED | JP5 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|-----------------------------+----------+-------------------|
| » | Factory configured - do | JP0 | N/A |
| | not alter | | |
|---+-------------------------+----------+-------------------|
| » | Factory configured - do | JP4 | N/A |
| | not alter | | |
|---+-------------------------+----------+-------------------|
| » | Factory configured - do | JP6 | N/A |
| | not alter | | |
|---+-------------------------+----------+-------------------|
| | CPU type 486SX select | JP7 | pins 2 & 3 closed |
|---+-------------------------+----------+-------------------|
| | CPU type 486DX select | JP7 | pins 1 & 2, 3 & 4 |
| | | | closed |
|---+-------------------------+----------+-------------------|
| » | Factory configured - do | S1 | N/A |
| | not alter | | |
|------------------------------------------------------------|
| Note: Jumpers JP0, JP4, JP6, and S1 are factory test |
| points and should not be altered. The size of the test |
| points is unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | DRAM |
|----------------------------+-------------------------------|
| 4MB | (4) 1M x 9 |
|----------------------------+-------------------------------|
| 16MB | (4) 4M x 9 |
+------------------------------------------------------------+
