# ATRONICS INTERNATIONAL, INC.
IDE-2015PL
Data bus: 32-bit VL-bus
Size: Three-quarter length, half-height card
Hard drive Two IDE(AT) drives
supported:
Floppy drives Two 360KB, 720KB, 1.2MB, or 1.44MB
supported: drives

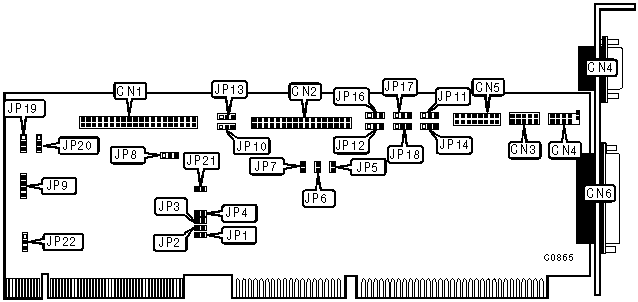

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|-------------------------------------------------+----------|
| 40-pin IDE(AT) connector | CN1 |
|-------------------------------------------------+----------|
| 34-pin cable connector - floppy drive | CN2 |
|-------------------------------------------------+----------|
| 10-pin serial port 2 - internal | CN3 |
|-------------------------------------------------+----------|
| 10-pin serial port 1 - internal, 9-pin serial | CN4 |
| port 1 external | |
|-------------------------------------------------+----------|
| 16-pin game port | CN5 |
|-------------------------------------------------+----------|
| 25-pin parallel port - external | CN6 |
|-------------------------------------------------+----------|
| 4-pin connector - drive active LED | JP9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|-----------------------------------+--------------+---------|
| » | Factory configured - do not | JP1 | open |
| | alter | | |
|---+-------------------------------+--------------+---------|
| » | Factory configured - do not | JP2 | open |
| | alter | | |
|---+-------------------------------+--------------+---------|
| » | Factory configured - do not | JP3 | open |
| | alter | | |
|---+-------------------------------+--------------+---------|
| » | Factory configured - do not | JP4 | open |
| | alter | | |
|---+-------------------------------+--------------+---------|
| » | Factory configured - do not | JP5 | N/A |
| | alter | | |
|---+-------------------------------+--------------+---------|
| » | Factory configured - do not | JP6 | N/A |
| | alter | | |
|---+-------------------------------+--------------+---------|
| » | Factory configured - do not | JP7 | N/A |
| | alter | | |
|---+-------------------------------+--------------+---------|
| » | Factory configured - do not | JP8/pins 1 & | closed |
| | alter | 2 | |
|---+-------------------------------+--------------+---------|
| » | Floppy drive interface | JP10/pins 1 | closed |
| | enabled | & 2 | |
|---+-------------------------------+--------------+---------|
| | Floppy drive interface | JP10/pins 2 | closed |
| | disabled | & 3 | |
|---+-------------------------------+--------------+---------|
| » | Serial port 1 enabled | JP11/pins 1 | closed |
| | | & 2 | |
|---+-------------------------------+--------------+---------|
| | Serial port 1 disabled | JP11/pins 2 | closed |
| | | & 3 | |
|---+-------------------------------+--------------+---------|
| » | Parallel port is LPT1 | JP12/pins 1 | closed |
| | | & 2 | |
|---+-------------------------------+--------------+---------|
| | Parallel port is LPT2 | JP12/pins 2 | closed |
| | | & 3 | |
|---+-------------------------------+--------------+---------|
| » | Game port enabled | JP13/pins 1 | closed |
| | | & 2 | |
|---+-------------------------------+--------------+---------|
| | Game port disabled | JP13/pins 2 | closed |
| | | & 3 | |
|---+-------------------------------+--------------+---------|
| » | Serial port 1 is COM1 | JP14/pins 1 | closed |
| | | & 2 | |
|---+-------------------------------+--------------+---------|
| | Serial port 1 is COM3 | JP14/pins 2 | closed |
| | | & 3 | |
|---+-------------------------------+--------------+---------|
| » | Parallel port enabled | JP16/pins 1 | closed |
| | | & 2 | |
|---+-------------------------------+--------------+---------|
| | Parallel port disabled | JP16/pins 2 | closed |
| | | & 3 | |
|---+-------------------------------+--------------+---------|
| » | Serial port 2 enabled | JP17/pins 1 | closed |
| | | & 2 | |
|---+-------------------------------+--------------+---------|
| | Serial port 2 disabled | JP17/pins 2 | closed |
| | | & 3 | |
|---+-------------------------------+--------------+---------|
| » | Serial port 2 is COM2 | JP18/pins 1 | closed |
| | | & 2 | |
|---+-------------------------------+--------------+---------|
| | Serial port 2 is COM4 | JP18/pins 2 | closed |
| | | & 3 | |
|---+-------------------------------+--------------+---------|
| » | Factory configured - do not | JP19/pins 2 | closed |
| | alter | & 3 | |
|---+-------------------------------+--------------+---------|
| » | Factory configured - do not | JP20/pins 2 | closed |
| | alter | & 3 | |
|---+-------------------------------+--------------+---------|
| » | Factory configured - do not | JP21 | open |
| | alter | | |
|---+-------------------------------+--------------+---------|
| » | IDE interface enabled | JP22/pins 1 | closed |
| | | & 2 | |
|---+-------------------------------+--------------+---------|
| | IDE interface disabled | JP22/pins 2 | closed |
| | | & 3 | |
+------------------------------------------------------------+
