# MICRO-STAR INTERNATIONAL CO., LTD.
MS-4803
+------------------------------------------------------------+
|------------------------------------------------------------|
| Data bus: | 32-bit PCI |
|--------------------------+---------------------------------|
| Size: | Half-length, full-height card |
|--------------------------+---------------------------------|
| Hard drive supported: | Four IDE(AT) drives |
|--------------------------+---------------------------------|
| Floppy drives supported: | None |
+------------------------------------------------------------+
IMG IMG 1
+------------------------------------------------------------+

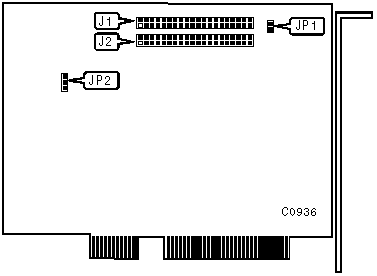

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|------------------------------------------+-----------------|
| 40-pin primary IDE(AT) connector | J1 |
|------------------------------------------+-----------------|
| 40-pin secondary IDE(AT) connector | J2 |
|------------------------------------------+-----------------|
| Drive active LED | JP1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|--------------------------------+----------+----------------|
| Secondary IDE(AT) IRQ 15 | JP2 | Pins 1 & 2 |
| select | | closed |
|--------------------------------+----------+----------------|
| Primary IDE(AT) IRQ 14 select | JP2 | Pins 2 & 3 |
| | | closed |
+------------------------------------------------------------+
