# ADVANCED INTEGRATION RESEARCH, INC.
IDE-2V
Data bus: 32-bit VL-bus
Size: Three-quarter length, half-height card
Hard drive Two IDE(AT) drives
supported:
Floppy drives Two 360KB, 720KB, 1.2MB, or 1.44MB
supported: drives

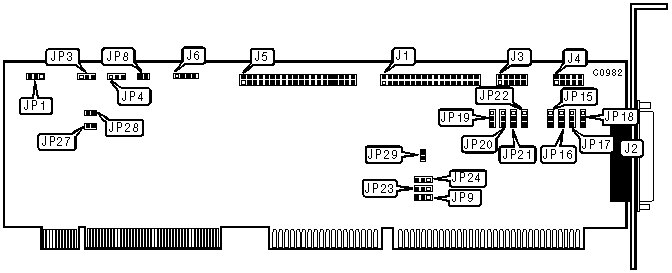

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|------------------------------------------+-----------------|
| 34-pin cable connector - floppy drive | J1 |
|------------------------------------------+-----------------|
| 25-pin parallel port - external | J2 |
|------------------------------------------+-----------------|
| 10-pin serial port 2 - internal | J3 |
|------------------------------------------+-----------------|
| 10-pin serial port 1 - internal | J4 |
|------------------------------------------+-----------------|
| 40-pin IDE(AT) connector | J5 |
|------------------------------------------+-----------------|
| 4-pin connector - drive active LED | J6 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|------------------------------------+----------+------------|
| » | Serial port 1 IRQ 4 select | JP23 | Pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Serial port 1 IRQ 3 select | JP23 | Pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Serial port 2 IRQ 3 select | JP24 | Pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Serial port 2 IRQ 4 select | JP24 | Pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Parallel port IRQ 7 select | JP9 | Pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Parallel port IRQ 5 select | JP9 | Pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Floppy drive interface enabled | JP22 | Pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Floppy drive interface | JP22 | Pins 1 & 2 |
| | disabled | | closed |
|---+--------------------------------+----------+------------|
| » | Turbo speed disabled | JP1 | Pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Turbo speed enabled | JP1 | Pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Factory configured - do not | JP29 | Open |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT ADDRESS SELECTION |
|------------------------------------------------------------|
| LPT | JP19 | JP20 |
|------------------+--------------------+--------------------|
| | LPT1 (378h) | Pins 1 & 2 closed | Pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| » | LPT2 (278h) | Pins 2 & 3 closed | Pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| | LPT3 (3BCh) | Pins 2 & 3 closed | Pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| | Disabled | Pins 1 & 2 closed | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 1 ADDRESS SELECTION |
|------------------------------------------------------------|
| COM | JP15 | JP16 |
|------------------+--------------------+--------------------|
| » | COM1 (3F8h) | Pins 2 & 3 closed | Pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| | COM2 (2F8h) | Pins 1 & 2 closed | Pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| | Disabled | Pins 2 & 3 closed | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 2 ADDRESS SELECTION |
|------------------------------------------------------------|
| COM | JP17 | JP18 |
|------------------+--------------------+--------------------|
| » | COM2 (2F8h) | Pins 2 & 3 closed | Pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| | COM1 (3F8h) | Pins 1 & 2 closed | Pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| | Disabled | Pins 2 & 3 closed | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| IDE ENABLE/DISABLE SELECTION |
|------------------------------------------------------------|
| Setting | JP8 | JP21 |
|----------------------+----------------+--------------------|
| » | Enable | Open | Pins 2 & 3 closed |
|---+------------------+----------------+--------------------|
| | Disable | Closed | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| IRQ14 BUFFER SELECTION |
|------------------------------------------------------------|
| IRQ14 | JP27 | JP28 |
|----------------------------+---------------+---------------|
| » | Direct from drive | Open | Closed |
|---+------------------------+---------------+---------------|
| | Buffered from drive | Closed | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| IDE RECOVERY TIME SELECTION |
|------------------------------------------------------------|
| Setting | JP3 | JP4 |
|--------------------+-------------------+-------------------|
| | 120ns | Pins 1 & 2 closed | Pins 1 & 2 closed |
|---+----------------+-------------------+-------------------|
| | 180ns | Pins 2 & 3 closed | Pins 1 & 2 closed |
|---+----------------+-------------------+-------------------|
| | 240ns | Pins 1 & 2 closed | Pins 2 & 3 closed |
|---+----------------+-------------------+-------------------|
| » | 300ns | Pins 2 & 3 closed | Pins 2 & 3 closed |
+------------------------------------------------------------+
