# ACARD TECHNOLOGY CORPORATION
AEC6712UW
Card Type Controller card
Maximum Onboard Memory Unidentified
Hard Drives supported Up to 15 SCSI devices
Floppy drives supported None
I/O Options SCSI connectors (3), LED connector
Data Bus 16-bit ISA
Card Size Half-length, full height card
IMG IMG 1
+------------------------------------------------------------+

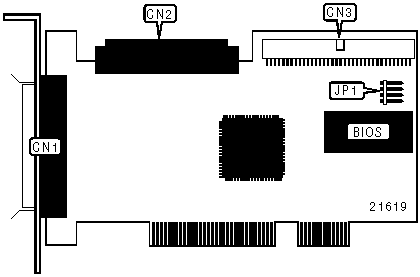

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location | Function | Location |
|-------------+----------+------------------------+----------|
| 68-pin SCSI | CN1 | 50-pin SCSI connector | CN3 |
| connector - | | - internal | |
| external | | | |
|-------------+----------+------------------------+----------|
| 68-pin SCSI | CN2 | 4-pin connector - | JP1 |
| connector - | | drive active LED | |
| internal | | | |
+------------------------------------------------------------+
