# ACARD TECHNOLOGY CORPORATION
AEC6712U
Card Type Controller card
Hard Drives supported Up to 7 SCSI devices
Floppy drives supported None
I/O Options SCSI connector (2), LED connector
Data Bus 16-bit ISA
Card Size Half-length, half-height card

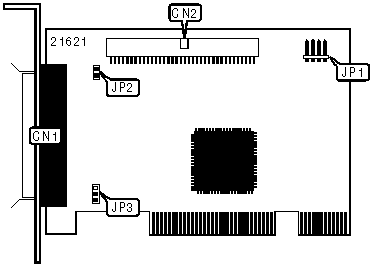

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location | Function | Location |
|-------------+----------+------------------------+----------|
| 50-pin SCSI | CN1 | 4-pin connector - | JP1 |
| connector - | | drive active LED | |
| external | | | |
|-------------+----------+------------------------+----------|
| 50-pin SCSI | CN2 | | |
| connector - | | | |
| internal | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|---------------------------------+-------+------------------|
| » | Active termination enabled | JP2 | Closed |
|---+-----------------------------+-------+------------------|
| | Active termination disabled | JP2 | Open |
|---+-----------------------------+-------+------------------|
| » | Flash ROM enabled | JP3 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------+-------+------------------|
| | Flash ROM disabled | JP3 | Pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
