# ADAPTEC, INC.
AVA-1505AI
Card Type Hard drive controller card
Hard Drives supported Up to 7 SCSI devices
Floppy drives supported None
Data Bus 16-bit ISA
Card Size Half-length, half-height card

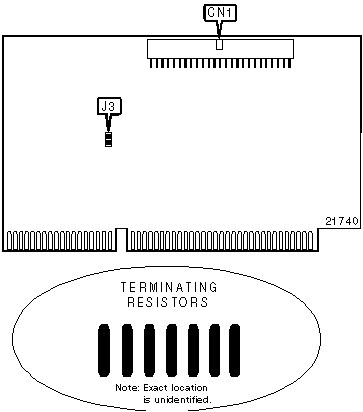

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|--------------------------------------------+---------------|
| 50-pin SCSI connector | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------------+-------+-----------|
| ยป | I/O Port address 340h | J3 | Open |
|---+------------------------------------+-------+-----------|
| | I/O Port address 140h | J3 | Closed |
+------------------------------------------------------------+
