# ADAPTEC, INC.
AHA-2930
Card Type Hard drive controller card
Hard Drives Up to 7 SCSI devices
supported
I/O Options SCSI connector - external, SCSI connector -
internal, LED connector
Data Bus 32-bit PCI
Card Size Half-length, full-height
IMG IMG 1
+------------------------------------------------------------+

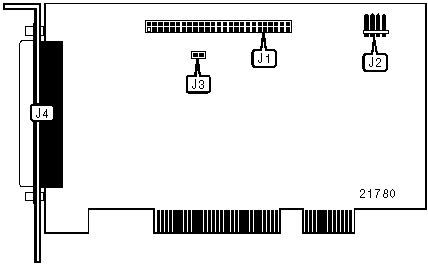

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location | Function | Location |
|------------------------+----------+-------------+----------|
| 50-pin SCSI connector | J1 | 50-pin SCSI | J4 |
| - internal | | connector - | |
| | | external | |
|------------------------+----------+-------------+----------|
| 4-pin connector - | J2 | | |
| drive active LED | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------------+-------+-----------|
| ยป | Active termination enabled | J3 | Closed |
|---+------------------------------------+-------+-----------|
| | Active termination disabled | J3 | Open |
+------------------------------------------------------------+
