# EVEREX SYSTEMS, INC.
EV-368
Data Bus: 16-bit ISA
Size: Half-length, Full-height card
Hard drives Two IDE (AT) Interface drives
supported:
Floppy drives Two 360KB, 720KB, 1.2MB, or 1.44MB drives
supported:

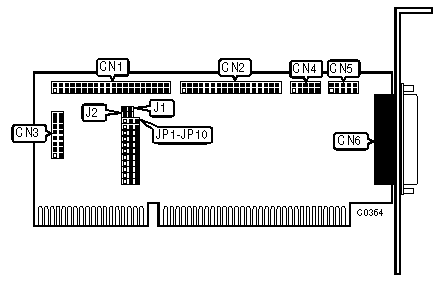

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|-----------------------------------------------+------------|
| 40-pin IDE (AT) Interface connector | CN1 |
|-----------------------------------------------+------------|
| 2-pin connector - Drive active LED | J2 |
|-----------------------------------------------+------------|
| 34-pin control cable connector - floppy drive | CN2 |
|-----------------------------------------------+------------|
| 15-pin game port - internal | CN3 |
|-----------------------------------------------+------------|
| 10-pin serial port (COM1/3) - internal | CN4 |
|-----------------------------------------------+------------|
| 10-pin serial port (COM2/4) - internal | CN5 |
|-----------------------------------------------+------------|
| 25-pin parallel port (LPT2/3) external | CN6 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|------------------------------------+----------+------------|
| » | I/O Channel Ready signal | J1 | Closed |
| | enabled | | |
|---+--------------------------------+----------+------------|
| | I/O Channel Ready signal | J1 | Open |
| | disabled | | |
|---+--------------------------------+----------+------------|
| » | Serial port 2 (CN5) is set to | JP1 | Pins 1 & 2 |
| | COM2 | | closed |
|---+--------------------------------+----------+------------|
| | Serial port 2 (CN5) is set to | JP1 | Pins 2 & 3 |
| | COM4 | | closed |
|---+--------------------------------+----------+------------|
| » | Serial port 2 (CN5) enabled | JP2 | Pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Serial port 2 (CN5) disabled | JP2 | Pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Game port (CN3) enabled | JP3 | Pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Game port (CN3) disabled | JP3 | Pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Serial port 1 (CN4) is set to | JP4 | Pins 1 & 2 |
| | COM1 | | closed |
|---+--------------------------------+----------+------------|
| | Serial port 1 (CN4) is set to | JP4 | Pins 2 & 3 |
| | COM4 | | closed |
|---+--------------------------------+----------+------------|
| » | Printer port is set to LPT2 | JP5 | Pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Printer port is set to LPT3 | JP5 | Pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Serial port 1 (CN4) enabled | JP6 | Pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Serial port 1 (CN4) disabled | JP6 | Pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Floppy drive enabled | JP7 | Pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Floppy drive disabled | JP7 | Pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Hard drive controllers exist | JP8 | Pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Hard drive controllers do not | JP8 | Pins 2 & 3 |
| | exist | | closed |
|---+--------------------------------+----------+------------|
| » | Hard drive enabled | JP9 | Pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Hard drive disabled | JP9 | Pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Printer port enabled | JP10 | Pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Printer port disabled | JP10 | Pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
