# FIRST INTERNATIONAL COMPUTER, INC.
MIO-V (16-BIT VERSION)
+------------------------------------------------------------+
|------------------------------------------------------------|
| Data bus: | 16-bit, ISA |
|-------------------+----------------------------------------|
| Size: | Half-length, half-height card |
|-------------------+----------------------------------------|
| Hard drive | Two IDE (AT) interface drives |
| supported: | |
|-------------------+----------------------------------------|
| Floppy drives | Two 360KB, 720KB, 1.2MB, or 1.44MB |
| supported: | drives |
+------------------------------------------------------------+
IMG IMG 1
+------------------------------------------------------------+

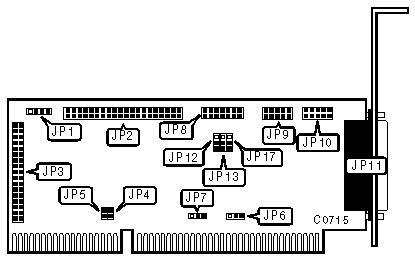

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|-----------------------------------------------+------------|
| 4-pin connector - drive active LED | JP1 |
|-----------------------------------------------+------------|
| 40-pin IDE (AT) Interface connector | JP2 |
|-----------------------------------------------+------------|
| 34-pin control cable connector - floppy drive | JP3 |
|-----------------------------------------------+------------|
| Game port | JP8 |
|-----------------------------------------------+------------|
| 10-pin serial port 2 | JP9 |
|-----------------------------------------------+------------|
| 10-pin serial port 1 | JP10 |
|-----------------------------------------------+------------|
| 25-pin parallel port | JP11 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|----------------------------+-----------+-------------------|
| » | Floppy drive enabled | JP17 | pins 1 & 2 closed |
|---+------------------------+-----------+-------------------|
| | Floppy drive disabled | JP17 | pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| IDE PORT |
|------------------------------------------------------------|
| Setting | JP4 | JP5 |
|------------------------+------------------+----------------|
| » | Enabled | closed | open |
|---+--------------------+------------------+----------------|
| | Disabled | open | open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORTS 1 & 2 CONFIGURATION |
|------------------------------------------------------------|
| Port 1 | Port 2 | JP6 | JP7 |
|-----------+--------+-------------------+-------------------|
| » | COM1 | COM2 | pins 1 & 2 closed | pins 1 & 2 closed |
|---+-------+--------+-------------------+-------------------|
| | COM3 | COM4 | pins 1 & 2 closed | pins 2 & 3 closed |
|---+-------+--------+-------------------+-------------------|
| | COM1 | COM4 | pins 2 & 3 closed | pins 1 & 2 closed |
|---+-------+--------+-------------------+-------------------|
| | COM2 | COM3 | pins 2 & 3 closed | pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT CONFIGURATION |
|------------------------------------------------------------|
| LPT | JP12 | JP13 |
|------------------+--------------------+--------------------|
| » | LPT1 | pins 1 & 2 closed | pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| | LPT2 | pins 1 & 2 closed | pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| | LPT3 | pins 2 & 3 closed | pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| | Disabled | pins 2 & 3 closed | pins 2 & 3 closed |
+------------------------------------------------------------+
