# KIMPSION INTERNATIONAL
WA6-V
Data bus: 16-bit, ISA
Size: Full-length, half-height card
Hard drives supported: Two MFM ST506/412 drives
Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB
Sector interleave: 1:1
Maximum heads/cyl.: 16 heads and 2048 cylinders
IMG IMG 1
+------------------------------------------------------------+

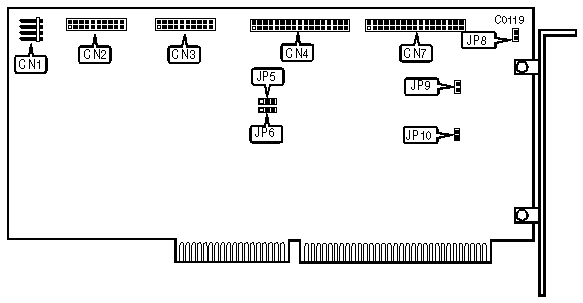

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|-------------------------------------------+----------------|
| 4-pin connector-drive active LED | CN1 |
|-------------------------------------------+----------------|
| 20-pin data cable connector-drive 1 | CN2 |
|-------------------------------------------+----------------|
| 20-pin data cable connector-drive 0 | CN3 |
|-------------------------------------------+----------------|
| 34-pin control cable connector-hard drive | CN4 |
|-------------------------------------------+----------------|
| 34-pin data cable connector-floppy drive | CN7 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|------------------------------------+----------+------------|
| » | Hard drive port address is | JP5 | pins 2 & 3 |
| | 1F0-1F7h | | closed |
|---+--------------------------------+----------+------------|
| | Hard drive port address is | JP5 | pins 1 & 2 |
| | 170-177h | | closed |
|---+--------------------------------+----------+------------|
| » | Floppy drive port address is | JP6 | pins 2 & 3 |
| | 3F0-3F7h | | closed |
|---+--------------------------------+----------+------------|
| | Floppy drive port address is | JP6 | pins 1 & 3 |
| | 370-377h | | closed |
|---+--------------------------------+----------+------------|
| » | Bracket ground option not used | JP8 | open |
|---+--------------------------------+----------+------------|
| | Connects bracket to board | JP8 | closed |
| | ground | | |
|---+--------------------------------+----------+------------|
| » | Pre-compensation set at 125ns. | JP9 | open |
|---+--------------------------------+----------+------------|
| | Pre-compensation set at 187ns. | JP9 | closed |
|---+--------------------------------+----------+------------|
| » | Single-speed floppy drive | JP10 | open |
| | supported | | |
|---+--------------------------------+----------+------------|
| | Dual-speed floppy drive | JP10 | closed |
| | supported | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTES |
|------------------------------------------------------------|
| Notes: Do not combine single- and dual-speed floppy drives |
| on the same controller card. |
| |
| There is no on-board BIOS format program. You must use |
| software to low-level your drives. |
| |
| This controller is compatible with the Western Digital |
| WD1006V-MM2. |
+------------------------------------------------------------+
