# KIMPSION INTERNATIONAL
WA6-V4
+------------------------------------------------------------+
| Q4 /92 |
+------------------------------------------------------------+
Data bus: 16-bit, ISA
Size: Full-length, half-height card
Hard drives supported: Two MFM ST506 drives
Floppy drives supported: Four 360KB, 720KB, 1.2MB, or 1.44MB
Sector interleave: 1:1
IMG IMG 1
+------------------------------------------------------------+

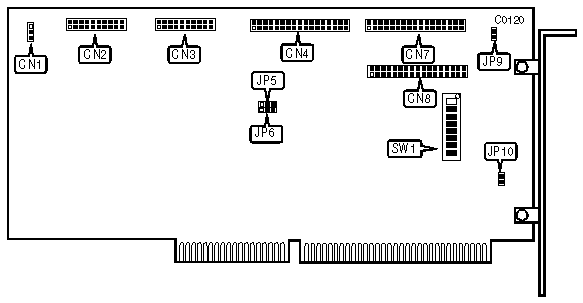

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|-------------------------------------------------+----------|
| 4-pin connector-drive active LED | CN1 |
|-------------------------------------------------+----------|
| 20-pin data cable connector-drive 1 | CN2 |
|-------------------------------------------------+----------|
| 20-pin data cable connector-drive 0 | CN3 |
|-------------------------------------------------+----------|
| 34-pin control cable connector-hard drive | CN4 |
|-------------------------------------------------+----------|
| 34-pin data cable connector-floppy drives 0 and | CN7 |
| 1 | |
|-------------------------------------------------+----------|
| 34-pin data cable connector-floppy drives 2 and | CN8 |
| 3 | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|------------------------------------+----------+------------|
| » | Hard drive port address is | JP5 | pins 2 & 3 |
| | 1F0-1F7h | | closed |
|---+--------------------------------+----------+------------|
| | Hard drive port address is | JP5 | pins 1 & 2 |
| | 170-177h | | closed |
|---+--------------------------------+----------+------------|
| » | Floppy drive port address for | JP6 | pins 2 & 3 |
| | CN7 is 3F0-3F7h | | closed |
|---+--------------------------------+----------+------------|
| | Floppy drive port address for | JP6 | pins 1 & 2 |
| | CN7 is 370-377h | | closed |
|---+--------------------------------+----------+------------|
| » | Bracket ground option disabled | JP9 | open |
|---+--------------------------------+----------+------------|
| | Bracket ground option enabled | JP9 | closed |
|---+--------------------------------+----------+------------|
| » | Floppy drive port address for | JP10 | closed |
| | CN8 is 370-377h | | |
|---+--------------------------------+----------+------------|
| | Floppy drive port address for | JP10 | open |
| | CN8 is 3F0-3F7h | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRIVE SELECT MODE JUMPERS |
|------------------------------------------------------------|
| Drive Size | Switch 1, 3, 5 or 7 | Switch 2, 4, 6, or 8 |
|---------------+---------------------+----------------------|
| 360KB | on | on |
|---------------+---------------------+----------------------|
| 720KB | on | off |
|---------------+---------------------+----------------------|
| 1.2KB | off | on |
|---------------+---------------------+----------------------|
| 1.44KB | off | off |
|------------------------------------------------------------|
| Floppy drive 0 uses SW1/switches 1 and 2 |
| |
| Floppy drive 1 uses SW1/switches 3 and 4 |
| |
| Floppy drive 2 uses SW1/switches 5 and 6 |
| |
| Floppy drive 3 uses SW1/switches 7 and 8 |
+------------------------------------------------------------+
