# LONGSHINE MICROSYSTEM, INC.
LCS-6624, LCS-6624G(REV. 1)
Data bus: 16-bit, ISA
Size: half-length, full-height card
Hard drives supported: Two IDE drives
Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB
Special Features: Two serial, one parallel
LCS-6624-G: Game port
IMG IMG 1
+------------------------------------------------------------+

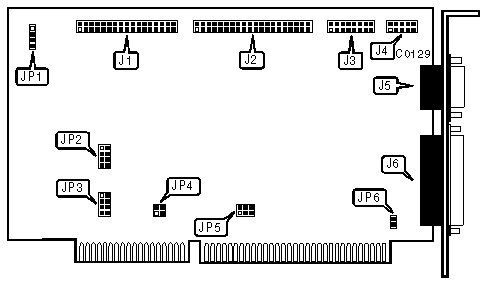

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|----------------------------------------------+-------------|
| 34-pin data cable connector-floppy drive | J1 |
|----------------------------------------------+-------------|
| 40-pin AT Interface (IDE) connector-internal | J2 |
|----------------------------------------------+-------------|
| 16 pin game port-internal (LCS-6624-G) | J3 |
|----------------------------------------------+-------------|
| 10-pin serial port 2-internal | J4 |
|----------------------------------------------+-------------|
| DB-9 male connector-serial port 1 | J5 |
|----------------------------------------------+-------------|
| DB-25 female connector-parallel port | J6 |
|----------------------------------------------+-------------|
| 4-pin connector-drive active LED | JP1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|--------------------------------+--------------+------------|
| » | Factory configured - do | JP2/jumper 4 | closed |
| | not alter | | |
|---+----------------------------+--------------+------------|
| » | Factory configured - do | JP3/jumper 3 | closed |
| | not alter | | |
|---+----------------------------+--------------+------------|
| » | Floppy drive enabled | JP4 | open |
|---+----------------------------+--------------+------------|
| | Floppy drive disabled | JP4 | closed |
|---+----------------------------+--------------+------------|
| » | Hard drive enabled | JP4A | open |
|---+----------------------------+--------------+------------|
| | Hard drive disabled | JP4A | closed |
|---+----------------------------+--------------+------------|
| » | Parallel port set to LPT2 | JP5 & JP5A | pins 1 & 2 |
| | on IRQ7 | | closed |
|---+----------------------------+--------------+------------|
| | Parallel port set to LPT3 | JP5 & JP5A | pins 2 & 3 |
| | on IRQ5 | | closed |
|---+----------------------------+--------------+------------|
| » | LCS-6624 not grounded to | JP6 | open |
| | host | | |
|---+----------------------------+--------------+------------|
| | LCS-6624 grounded to host | JP6 | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 1 (J5) CONFIGURATION |
|------------------------------------------------------------|
| Port 2 | JP3/1 | JP2/2 | JP2/3 |
|---------------------------------+--------+--------+--------|
| » | Serial port 1 set to COM1 | closed | open | closed |
| | (3F8H-3FFh) | | | |
|---+-----------------------------+--------+--------+--------|
| | Serial port 1 set to COM3 | open | closed | closed |
| | (3E8H-3EFh)) | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 2 (J4) CONFIGURATION |
|------------------------------------------------------------|
| Port 2 | JP2/1 | JP2/2 | JP2/3 |
|---------------------------------+--------+--------+--------|
| » | Serial port 2 set to COM2 | closed | open | closed |
| | (2F8H-2FFh) | | | |
|---+-----------------------------+--------+--------+--------|
| | Serial port 2 set to COM4 | open | closed | closed |
| | (2E8H-2EFh) | | | |
+------------------------------------------------------------+
