# JUKO LABORATORIES, LTD.
D16-X
+------------------------------------------------------------+
| Q1 /93 |
+------------------------------------------------------------+
Data bus: 8-bit, ISA
Size: Half-length, full-height card
Hard drives supported: One IDE (AT/XT) Interface drive
Floppy drives supported: None

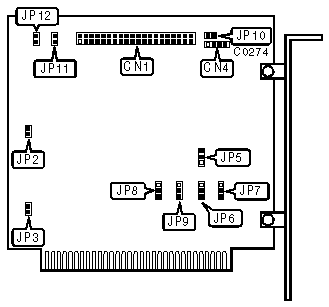

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|------------------------------------------+-----------------|
| 40-pin IDE (AT/XT) Interface connector | CN1 |
|------------------------------------------+-----------------|
| 4-pin connector-drive active LED | CN4 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|------------------------------------+----------+------------|
| » | IDE (AT) Interface drive | JP2 | open |
| | supported | | |
|---+--------------------------------+----------+------------|
| | IDE (XT) Interface drive | JP2 | closed |
| | supported | | |
|---+--------------------------------+----------+------------|
| » | Hard drive controller enabled | JP3 | closed |
|---+--------------------------------+----------+------------|
| | Hard drive controller disabled | JP3 | open |
|---+--------------------------------+----------+------------|
| » | ALE/Control signal timing | JP5 | pins 1 & 2 |
| | option 1 | | closed |
|---+--------------------------------+----------+------------|
| | ALE/Control signal timing | JP5 | pins 2 & 3 |
| | option 2 | | closed |
|---+--------------------------------+----------+------------|
| » | PDIAG (Pass Diagnostics) | JP10 | open |
| | deselected | | |
|---+--------------------------------+----------+------------|
| | PDIAG (Pass Diagnostics) | JP10 | closed |
| | selected | | |
|---+--------------------------------+----------+------------|
| » | ALE (Address Latch Enable) | JP11 | open |
| | deselected | | |
|---+--------------------------------+----------+------------|
| | ALE (Address Latch Enable) | JP11 | closed |
| | selected | | |
|---+--------------------------------+----------+------------|
| » | AEN (Address Enable) | JP12 | open |
| | deselected | | |
|---+--------------------------------+----------+------------|
| | AEN (Address Enable) selected | JP12 | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIOS ADDRESS |
|------------------------------------------------------------|
| Address | JP6 | JP7 |
|------------------+--------------------+--------------------|
| » | C800h | pins 2 & 3 closed | pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| | CA00h | pins 1 & 2 closed | pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| | CC00h | pins 2 & 3 closed | pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| | CE00h | pins 1 & 2 closed | pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIOS EPROM CONFIGURATION SETTINGS |
|------------------------------------------------------------|
| Chip and Memory Bank | JP8 | JP9 |
|------------------------+-----------------+-----------------|
| | 2764 | pins 2 & 3 | pins 1 & 2 |
| | | closed | closed |
|---+--------------------+-----------------+-----------------|
| » | 27256 - 0000-1FFFh | pins 2 & 3 | pins 2 & 3 |
| | | closed | closed |
|---+--------------------+-----------------+-----------------|
| | 27256 - 2000-3FFFh | pins 1 & 2 | pins 2 & 3 |
| | | closed | closed |
|---+--------------------+-----------------+-----------------|
| | 27256 - 4000-5FFFh | pins 2 & 3 | pins 1 & 2 |
| | | closed | closed |
|---+--------------------+-----------------+-----------------|
| | 27256 - 6000-7FFFh | pins 1 & 2 | pins 1 & 2 |
| | | closed | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRIVE TYPE TABLE |
|------------------------------------------------------------|
| # | Heads | Cyli |Capacity| # |Heads |Cylinder|Capacity|
|----+--------+------+--------+-----+------+--------+--------|
| 1 | 4 | 306 | 10 | 24 | 5 | 977 | 40 |
|----+--------+------+--------+-----+------+--------+--------|
| 2 | 4 | 615 | 20 | 25 | 9 | 1024 | 76 |
|----+--------+------+--------+-----+------+--------+--------|
| 3 | 6 | 615 | 30 | 26 | 7 | 1224 | 71 |
|----+--------+------+--------+-----+------+--------+--------|
| 4 | 8 | 940 | 62 | 27 | 11 | 1224 | 111 |
|----+--------+------+--------+-----+------+--------+--------|
| 5 | 6 | 940 | 46 | 28 | 15 | 1224 | 152 |
|----+--------+------+--------+-----+------+--------+--------|
| 6 | 4 | 615 | 20 | 29 | 8 | 1024 | 68 |
|----+--------+------+--------+-----+------+--------+--------|
| 7 | 8 | 462 | 30 | 30 | 11 | 1024 | 93 |
|----+--------+------+--------+-----+------+--------+--------|
| 8 | 5 | 733 | 30 | 31 | 11 | 918 | 83 |
|----+--------+------+--------+-----+------+--------+--------|
| 9 | 15 | 900 | 112 | 32 | 9 | 925 | 69 |
|----+--------+------+--------+-----+------+--------+--------|
| 10 | 3 | 820 | 20 | 33 | 10 | 1024 | 85 |
|----+--------+------+--------+-----+------+--------+--------|
| 11 | 5 | 855 | 35 | 34 | 12 | 1024 | 102 |
|----+--------+------+--------+-----+------+--------+--------|
| 12 | 7 | 855 | 49 | 35 | 13 | 1024 | 110 |
|----+--------+------+--------+-----+------+--------+--------|
| 13 | 8 | 306 | 20 | 36 | 14 | 1024 | 119 |
|----+--------+------+--------+-----+------+--------+--------|
| 14 | 7 | 733 | 42 | 37 | 2 | 1024 | 17 |
|----+--------+------+--------+-----+------+-----------------|
| 15 |Reserved| 38 | 16 |1024 | 136 | |
|----+--------+------+--------+-----+------+-----------------|
| 16 | 4 | 612 | 20 | 39 | 15 | 918 | 114 |
|----+--------+------+--------+-----+------+--------+--------|
| 17 | 5 | 977 | 40 | 40 | 6 | 820 | 40 |
|----+--------+------+--------+-----+------+--------+--------|
| 18 | 7 | 977 | 56 | 41 | 5 | 1024 | 42 |
|----+--------+------+--------+-----+------+--------+--------|
| 19 | 7 | 1024 | 59 | 42 | 5 | 981 | 40 |
|----+--------+------+--------+-----+------+--------+--------|
| 20 | 5 | 733 | 30 | 43 | 10 | 981 | 81 |
|----+--------+------+--------+-----+------+--------+--------|
| 21 | 7 | 733 | 42 | 44 | 8 | 615 | 40 |
|----+--------+------+--------+-----+------+--------+--------|
| 22 | 5 | 733 | 30 | 45 | 10 | 963 | 80 |
|----+--------+------+--------+-----+------+--------+--------|
| 23 | 4 | 306 | 10 | 46 | 16 | 753 | 100 |
+------------------------------------------------------------+
