IDE1 - AT BUS/FLOPPY DISK CONTROLLER
+------------------------------------------------------------+
|------------------------------------------------------------|
| Data bus: | 16-bit, ISA |
|-------------------+----------------------------------------|
| Size: | Half-length, full-height card |
|-------------------+----------------------------------------|
| Hard drive | Two IDE (AT) Interface drives |
| supported: | |
|-------------------+----------------------------------------|
| Floppy drives | Two 360KB, 720KB, 1.2MB, or 1.44MB |
| supported: | drives |
+------------------------------------------------------------+

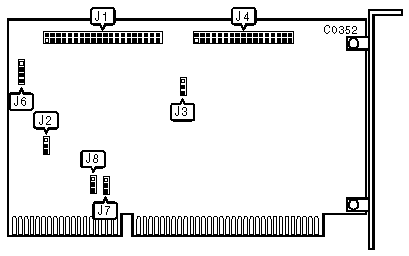

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|---------------------------------------------+--------------|
| 40-pin AT Interface (IDE) connector | J1 |
|---------------------------------------------+--------------|
| 34-pin control cable connector-floppy drive | J4 |
|---------------------------------------------+--------------|
| 4-pin connector-Drive active LED | J6 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|------------------------------------+----------+------------|
| » | Hard drive Interrupt is IRQ14 | JP2 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Hard drive Interrupt is | JP2 | pins 1 & 2 |
| | disabled | | closed |
|---+--------------------------------+----------+------------|
| » | 1.2MB floppy drive support | JP3 | pins 2 & 3 |
| | enabled | | closed |
|---+--------------------------------+----------+------------|
| | 360KB floppy drive support | JP3 | pins 1 & 2 |
| | enabled | | closed |
|---+--------------------------------+----------+------------|
| » | Floppy drive enabled | JP7 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Floppy drive disabled | JP7 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Hard drive enabled | JP8 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Hard drive disabled | JP8 | pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
