# INFOMATIC POWER SYSTEMS CORPORATION
VISTA-5033
+------------------------------------------------------------+
|------------------------------------------------------------|
| Data bus: | 32-bit, Vl bus |
|-------------------+----------------------------------------|
| Size: | Three/quarter-length, full-height card |
|-------------------+----------------------------------------|
| Hard drive | Two IDE (AT) Interface drives |
| supported: | |
|-------------------+----------------------------------------|
| Floppy drives | Two 360KB, 720KB, 1.2MB, or 1.44MB |
| supported: | drives |
+------------------------------------------------------------+
IMG IMG 1
+------------------------------------------------------------+

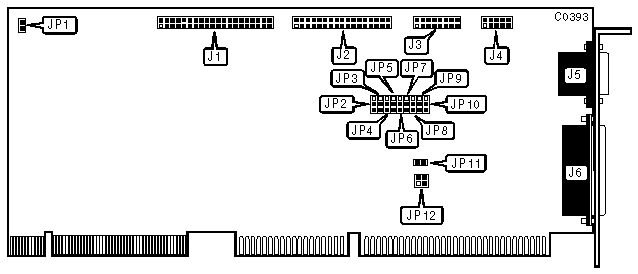

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|-----------------------------------------------+------------|
| 40-pin IDE(AT) Interface connector | J1 |
|-----------------------------------------------+------------|
| 34-pin control cable connector - floppy drive | J2 |
|-----------------------------------------------+------------|
| 15-pin game port - internal | J3 |
|-----------------------------------------------+------------|
| 10-pin serial port (COM2/3/4) - internal | J4 |
|-----------------------------------------------+------------|
| 10-pin serial port (COM1/3/4) - external | J5 |
|-----------------------------------------------+------------|
| 25-pin parallel port (LPT1/2/3) - external | J6 |
|-----------------------------------------------+------------|
| 2-pin connector - Drive active LED | JP1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|-----------------------------+----------+-------------------|
| » | Hard drive enabled | JP2 | pins 1 & 2 closed |
|---+-------------------------+----------+-------------------|
| | Hard drive disabled | JP2 | Pins 2 & 3 closed |
|---+-------------------------+----------+-------------------|
| » | Floppy drive enabled | JP3 | pins 1 & 2 closed |
|---+-------------------------+----------+-------------------|
| | Floppy drive disabled | JP3 | Pins 2 & 3 closed |
|---+-------------------------+----------+-------------------|
| » | Game Port (J3) enabled | JP11 | closed |
|---+-------------------------+----------+-------------------|
| | Game Port (J3) disabled | JP11 | open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT CONFIGURATION |
|------------------------------------------------------------|
| Port 1 (J5) | IRQ | JP4 | JP5 | JP12 |
|--------------+------+-------------+-----------+------------|
IMG IMG 2
| | | | | | |
|---+----------+------+-------------+-----------+------------|
| » | COM1 | IRQ4 | Pins 1 & 2 | Pins 1 & | pins 1 & 2 |
| | | | closed | 2 closed | closed |
|---+----------+------+-------------+-----------+------------|
| | COM2 | IRQ3 | Pins 1 & 2 | Pins 2 & | pins 2 & 4 |
| | | | closed | 3 closed | closed |
|---+----------+------+-------------+-----------+------------|
| | COM3 | IRQ4 | Pins 2 & 3 | Pins 1 & | pins 1 & 2 |
| | | | closed | 2 closed | closed |
|---+----------+------+-------------+-----------+------------|
| | Disabled | N/A | Pins 2 & 3 | Pins 2 & | N/A |
| | | | closed | 3 closed | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT CONFIGURATION |
|------------------------------------------------------------|
| Port 2 (J4) | IRQ | JP6 | JP7 | JP12 |
|--------------+------+------------+------------+------------|
| » | COM2 | IRQ3 | Pins 1 & 2 | Pins 1 & 2 | Pins 3 & 4 |
| | | | closed | closed | closed |
|---+----------+------+------------+------------+------------|
| | COM1 | IRQ4 | Pins 1 & 2 | Pins 2 & 3 | Pins 1 & 3 |
| | | | closed | closed | closed |
|---+----------+------+------------+------------+------------|
| | COM4 | IRQ3 | Pins 2 & 3 | Pins 1 & 2 | Pins 3 & 4 |
| | | | closed | closed | closed |
|---+----------+------+------------+------------+------------|
| | Disabled | N/A | Pins 2 & 3 | Pins 2 & 3 | N/A |
| | | | closed | closed | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT SETTINGS |
|------------------------------------------------------------|
| LPT | IRQ | JP8 | JP9 | JP10 |
|--------------+------+------------+------------+------------|
| » | 1 | IRQ7 | Pins 1 & 2 | Pins 1 & 2 | Pins 1 & 2 |
| | | | closed | closed | closed |
|---+----------+------+------------+------------+------------|
| | 2 | IRQ5 | Pins 2 & 3 | Pins 1 & 2 | Pins 2 & 3 |
| | | | closed | closed | closed |
|---+----------+------+------------+------------+------------|
| | 3 | N/A | Pins 1 & 2 | Pins 2 & 3 | N/A |
| | | | closed | closed | |
|---+----------+------+------------+------------+------------|
| | Disabled | N/A | Pins 2 & 3 | Pins 2 & 3 | N/A |
| | | | closed | closed | |
+------------------------------------------------------------+
