# LONGSHINE MICROSYSTEM, INC.
LCS-6611/W
+------------------------------------------------------------+
|------------------------------------------------------------|
| Data bus: | 16-bit, ISA |
|--------------------------+---------------------------------|
| Size: | Full-length, full-height card |
|--------------------------+---------------------------------|
| Hard drive supported: | Two MFM ST506/412 drives |
|--------------------------+---------------------------------|
| Floppy drives supported: | None |
+------------------------------------------------------------+
IMG IMG 1
+------------------------------------------------------------+

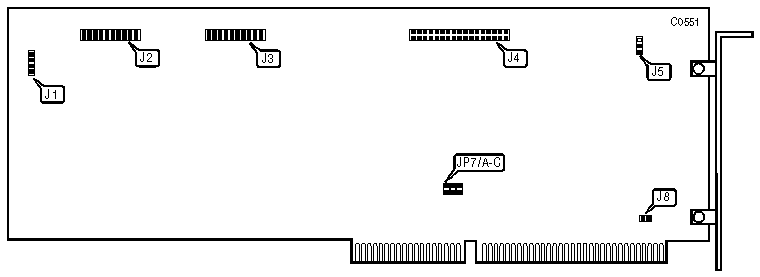

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|---------------------------------------------+--------------|
| 4-pin connector - drive active LED | J1 |
|---------------------------------------------+--------------|
| 20-pin data cable connector - drive 1 | J2 |
|---------------------------------------------+--------------|
| 20-pin data cable connector - drive 0 | J3 |
|---------------------------------------------+--------------|
| 34-pin control cable connector - hard drive | J4 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|------------------------------------+----------+------------|
| » | Hard drive primary address | J5 | pins 1 & 2 |
| | select | | closed |
|---+--------------------------------+----------+------------|
| | Hard drive alternate address | J5 | pins 2 & 3 |
| | select | | closed |
|---+--------------------------------+----------+------------|
| » | Hard drive LED in latch mode | J7/A | open |
|---+--------------------------------+----------+------------|
| | Hard drive LED in non-latch | J7/A | closed |
| | mode | | |
|---+--------------------------------+----------+------------|
| » | Factory configured - do not | J7/B | open |
| | alter | | |
|---+--------------------------------+----------+------------|
| » | Hard drive incompatible with | J7/C | open |
| | WD1003-WAH | | |
|---+--------------------------------+----------+------------|
| | Hard drive compatible with | J7/C | closed |
| | WD1003-WAH | | |
|---+--------------------------------+----------+------------|
| » | Bracket and ground are | J8 | open |
| | unconnected | | |
|---+--------------------------------+----------+------------|
| | Bracket and ground are | J8 | closed |
| | connected | | |
+------------------------------------------------------------+
