# JPN CORPORATION
CA8962
+------------------------------------------------------------+
|------------------------------------------------------------|
| Data bus: | 16-bit, ISA |
|-------------------+----------------------------------------|
| Size: | Half-length, full-height card |
|-------------------+----------------------------------------|
| Hard drive | Two IDE (AT) Interface drives |
| supported: | |
|-------------------+----------------------------------------|
| Floppy drives | Two 360KB, 720KB, 1.2MB, or 1.44MB |
| supported: | drives |
+------------------------------------------------------------+
IMG IMG 1
+------------------------------------------------------------+

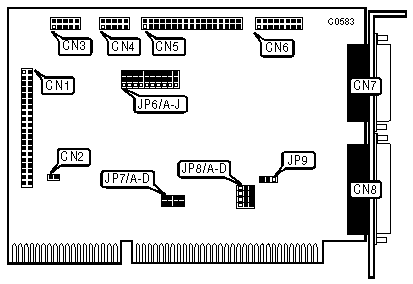

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|-----------------------------------------------+------------|
| 40-pin IDE (AT) Interface connector | CN1 |
|-----------------------------------------------+------------|
| 2-pin connector - drive active LED | CN2 |
|-----------------------------------------------+------------|
| 10-pin serial port (COM2/4) - internal | CN3 |
|-----------------------------------------------+------------|
| 10-pin serial port (COM1/3) - internal | CN4 |
|-----------------------------------------------+------------|
| 34-pin control cable connector - floppy drive | CN5 |
|-----------------------------------------------+------------|
| 16-pin bus mouse port | CN6 |
|-----------------------------------------------+------------|
| 15-pin game port - external | CN7 |
|-----------------------------------------------+------------|
| 25-pin parallel port (LPT1/2) - external | CN8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|---------------------------------+----------+---------------|
| | Parallel port - LPT1 (378h) | JP6/A | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------+----------+---------------|
| | Parallel port - LPT2 (278h) | JP6/A | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------+----------+---------------|
| | Serial port 2 - COM2 | JP6/B | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------+----------+---------------|
| | Serial port 2 - COM4 | JP6/B | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------+----------+---------------|
| | Parallel port - enabled | JP6/C | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------+----------+---------------|
| | Parallel port - disabled | JP6/C | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------+----------+---------------|
| | COM2/COM4 - enabled | JP6/D | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------+----------+---------------|
| | COM2/COM4 - disabled | JP6/D | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------+----------+---------------|
| | COM1/COM3 - enabled | JP6/E | Pins 1 & 3 |
| | | | closed |
|---+-----------------------------+----------+---------------|
| | COM1/COM3 - disabled | JP6/E | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------+----------+---------------|
| | Serial port 1 - COM1 | JP6/F | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------+----------+---------------|
| | Serial port 1 - COM3 | JP6/F | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------+----------+---------------|
| | loppy drive - enabled | JP6/G | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------+----------+---------------|
| | Floppy drive - disabled | JP6/G | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------+----------+---------------|
| | Hard drive - enabled | JP6/H | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------+----------+---------------|
| | Hard drive - disabled | JP6/H | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------+----------+---------------|
| | Game port - enabled | JP6/I | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------+----------+---------------|
| | Game port - disabled | JP6/I | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------+----------+---------------|
| | Bus mouse port - enabled | JP6/J | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------+----------+---------------|
| | Bus mouse port - disabled | JP6/J | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------+----------+---------------|
| » | Parallel port - IRQ7 | JP9 | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------+----------+---------------|
| | Parallel port - IRQ5 | JP9 | Pins 1 & 2 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 1 INTERRUPT SELECT |
|------------------------------------------------------------|
| IRQ | JP8/A | JP8/B | JP8/C | JP8/D |
|----------+------------+------------+-----------+-----------|
| » | IRQ4 | Pins 1 & 2 | Pins 1 & 2 | Pins 1 & | Pins 1 & |
| | | open | closed | 2 open | 2 open |
|---+------+------------+------------+-----------+-----------|
| | IRQ3 | Pins 1 & 2 | Pins 1 & 2 | Pins 1 & | Pins 1 & |
| | | closed | open | 2 open | 2 open |
|---+------+------------+------------+-----------+-----------|
| | IRQ5 | Pins 1 & 2 | Pins 1 & 2 | Pins 1 & | Pins 1 & |
| | | open | open | 2 closed | 2 open |
|---+------+------------+------------+-----------+-----------|
| | IRQ2 | Pins 1 & 2 | Pins 1 & 2 | Pins 1 & | Pins 1 & |
| | | open | open | 2 open | 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 2 INTERRUPT SELECT |
|------------------------------------------------------------|
| IRQ | JP8/A | JP8/B | JP8/C | JP8/D |
|----------+------------+------------+-----------+-----------|
| » | IRQ3 | Pins 2 & 3 | Pins 2 & 3 | Pins 2 & | Pins 2 & |
| | | closed | open | 3 open | 3 open |
|---+------+------------+------------+-----------+-----------|
| | IRQ4 | Pins 2 & 3 | Pins 2 & 3 | Pins 2 & | Pins 2 & |
| | | open | closed | 3 open | 3 open |
|---+------+------------+------------+-----------+-----------|
| | IRQ5 | Pins 2 & 3 | Pins 2 & 3 | Pins 2 & | Pins 2 & |
| | | open | open | 3 closed | 3 open |
|---+------+------------+------------+-----------+-----------|
| | IRQ2 | Pins 2 & 3 | Pins 2 & 3 | Pins 2 & | Pins 2 & |
| | | open | open | 3 open | 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BUS MOUSE INTERRUPT SELECT |
|------------------------------------------------------------|
| IRQ | JP7/A | JP7/B | JP7/C | JP7/D |
|----------+------------+------------+-----------+-----------|
| IRQ2 | Open | Open | Open | Closed |
|----------+------------+------------+-----------+-----------|
| IRQ3 | Closed | Open | Open | Open |
|----------+------------+------------+-----------+-----------|
| IRQ4 | Open | Closed | Open | Open |
|----------+------------+------------+-----------+-----------|
| IRQ5 | Open | Open | Closed | Open |
+------------------------------------------------------------+
