# KOUWELL ELECTRONICS CORPORATION
KW-556F
+------------------------------------------------------------+
|------------------------------------------------------------|
| Data bus: | 16-bit, ISA |
|-------------------+----------------------------------------|
| Size: | Half-length, full-height card |
|-------------------+----------------------------------------|
| Hard drive | Two IDE (AT) Interface drives |
| supported: | |
|-------------------+----------------------------------------|
| Floppy drives | Two 360KB, 720KB, 1.2MB, or 1.44MB |
| supported: | drives |
+------------------------------------------------------------+
IMG IMG 1
+------------------------------------------------------------+

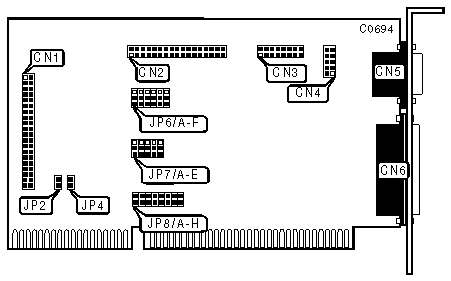

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|-----------------------------------------------+------------|
| 40-pin IDE(AT) Interface connector | CN1 |
|-----------------------------------------------+------------|
| 34-pin control cable connector - floppy drive | CN2 |
|-----------------------------------------------+------------|
| 16-pin game port - internal | CN3 |
|-----------------------------------------------+------------|
| 10-pin serial port (COM2/3/4) - internal | CN4 |
|-----------------------------------------------+------------|
| 9-pin serial port (COM1/3/4) - external | CN5 |
|-----------------------------------------------+------------|
| 25-pin parallel port (LPT1/2/3) - external | CN6 |
|-----------------------------------------------+------------|
| 2-pin connector - Drive active LED | JP2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|----------------------------+-----------+-------------------|
| » | Hard drive enabled | JP7/D | pins 2 & 3 closed |
|---+------------------------+-----------+-------------------|
| | Hard drive disabled | JP7/D | pins 1 & 2 closed |
|---+------------------------+-----------+-------------------|
| » | Floppy drive enabled | JP7/E | pins 2 & 3 closed |
|---+------------------------+-----------+-------------------|
| | Floppy drive disabled | JP7/E | pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS (CONTINUED) |
|------------------------------------------------------------|
| Function | Location | Setting |
|------------------------------------+----------+------------|
| » | Parallel Port is | JP4 | closed |
| | uni-directional | | |
|---+--------------------------------+----------+------------|
| | Parallel Port is | JP4 | open |
| | bi-directional | | |
|---+--------------------------------+----------+------------|
| » | Hard drive port address is | JP7/A | pins 1 & 2 |
| | 1F0-1F7,3F6 & 3F7h | | closed |
|---+--------------------------------+----------+------------|
| | Hard drive port address is | JP7/A | pins 2 & 3 |
| | 170-177, 376 & 377h | | closed |
|---+--------------------------------+----------+------------|
| » | Floppy drive booting sequence | JP7/B | pins 2 & 3 |
| | is A:/B: | | closed |
|---+--------------------------------+----------+------------|
| | Floppy drive booting sequence | JP7/B | pins 1 & 2 |
| | is B:/A: | | closed |
|---+--------------------------------+----------+------------|
| » | Floppy drive port address is | JP7/C | pins 1 & 2 |
| | 3F0-3F7h | | closed |
|---+--------------------------------+----------+------------|
| | Floppy drive port address is | JP7/C | pins 2 & 3 |
| | 370-377h | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 1 CONFIGURATION |
|------------------------------------------------------------|
| Setting | JP6/A | JP6/B |
|------------------+--------------------+--------------------|
| » | COM1 | pins 2 & 3 closed | pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| | COM3 | pins 1 & 2 closed | pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| | COM4 | pins 2 & 3 closed | pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| | Disabled | pins 1 & 2 closed | pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 1 INTERRUPT SELECT |
|------------------------------------------------------------|
| Setting | JP8/A | JP8/B | JP8/C |
|----------------+--------------+--------------+-------------|
| » | IRQ4 | closed | open | open |
|---+------------+--------------+--------------+-------------|
| | IRQ3 | open | closed | open |
|---+------------+--------------+--------------+-------------|
| | IRQ5 | open | open | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 2 CONFIGURATION |
|------------------------------------------------------------|
| Setting | JP6/C | JP6/D |
|------------------+--------------------+--------------------|
| » | COM2 | pins 2 & 3 closed | pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| | COM3 | pins 2 & 3 closed | pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| | COM4 | pins 1 & 2 closed | pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| | Disabled | pins 1 & 2 closed | pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 2 INTERRUPT SELECT |
|------------------------------------------------------------|
| Setting | JP8/D | JP8/E | JP8/F |
|----------------+--------------+--------------+-------------|
| » | IRQ3 | closed | open | open |
|---+------------+--------------+--------------+-------------|
| | IRQ4 | open | closed | open |
|---+------------+--------------+--------------+-------------|
| | IRQ5 | open | open | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT CONFIGURATION |
|------------------------------------------------------------|
| LPT | JP6/E | JP6/F |
|------------------+--------------------+--------------------|
| » | LPT1(378h) | pins 1 & 2 closed | pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| | LPT2(278h) | pins 2 & 3 closed | pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| | Disabled | pins 1 & 2 closed | pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT INTERRUPT SELECT |
|------------------------------------------------------------|
| IRQ | JP8/G | JP8/H |
|----------------------+------------------+------------------|
| » | IRQ7 | closed | open |
|----+-----------------+------------------+------------------|
| | IRQ5 | open | closed |
+------------------------------------------------------------+
