# INITIO CORPORATION
INI-9090U
Card Type Hard drive controller
Data Bus 32-bit PCI
Card Size Half-length, full-height card
Hard Drives supported Up to 7 Ultra SCSI devices
Floppy drives supported None

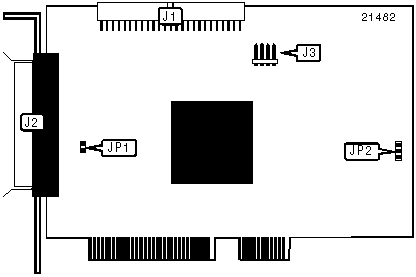

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location | Function | Location |
|-------------+----------+------------------------+----------|
| 50-pin SCSI | J1 | 4-pin connector - | J3 |
| connector - | | drive active LED | |
| internal | | | |
|-------------+----------+------------------------+----------|
| 50-pin SCSI | J2 | | |
| connector - | | | |
| external | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------------+-------+-----------|
| » | Host adapter is only one in system | JP1 | Open |
| | (see note below) | | |
|---+------------------------------------+-------+-----------|
| | Host adapter shares SCSI bus with | JP1 | Closed |
| | adapter in another computer | | |
|---+------------------------------------+-------+-----------|
| » | PC BIOS select | JP2 | Pins 1 & |
| | | | 2 closed |
|---+------------------------------------+-------+-----------|
| | MAC BIOS select | JP2 | Pins 2 & |
| | | | 3 closed |
|------------------------------------------------------------|
| Note: Closing jumper JP1 sets active termination so |
| it is always on. The setting is used when the adapter |
| shares the SCSI bus with an adapter in another |
| computer. If that computer can be turned off, closing |
| the jumper will insure that active on-board |
| termination is on all the time, regardless of whether |
| power is applied or not. |
+------------------------------------------------------------+
