# IOMEGA CORPORATION
JAZ JET ISA
Card Type Hard drive controller card
Hard Drives supported Up to 7 Fast SCSI-2 devices
Floppy drives supported None
Data Bus 16-bit ISA
Card Size Quarter-length, full-height card

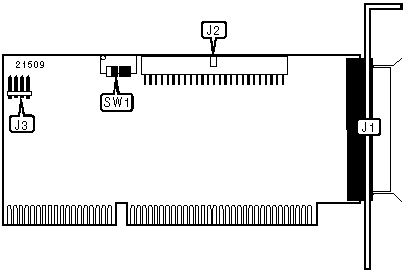

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location | Function | Location |
|-------------+----------+------------------------+----------|
| 50-pin SCSI | J1 | 4-pin connector - | J3 |
| connector - | | drive active LED | |
| external | | | |
|-------------+----------+------------------------+----------|
| 50-pin SCSI | J2 | | |
| connector - | | | |
| internal | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|----------------------------------+------------+------------|
| » | I/O address is 340-35Fh | SW1/4 | Off |
|---+------------------------------+------------+------------|
| | I/O address is 140-15Fh | SW1/4 | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIOS CONFIGURATION |
|------------------------------------------------------------|
| Setting | SW/1 | SW/2 | SW/3 |
|----------------------------+----------+----------+---------|
| » | BIOS address is DC000h | Off | Off | Off |
|---+------------------------+----------+----------+---------|
| | BIOS is disabled | Off | On | On |
+------------------------------------------------------------+
