# IBM CORPORATION
NETFINITY SERVERAID 3H ULTRA2
Card Type Hard drive controller
Chip Set Unidentified
Maximum Onboard 32MB DRAM
Memory
I/O Options SCSI connector (3), LED connector, DASD status
connector,
game port, serial port
Hard Drives Up to 45 Wide SCSI-2 or Ultra-wide SCSI
supported devices
Floppy drives None
supported
Data Bus 64-bit PCI
Card Size Full-length/full height card

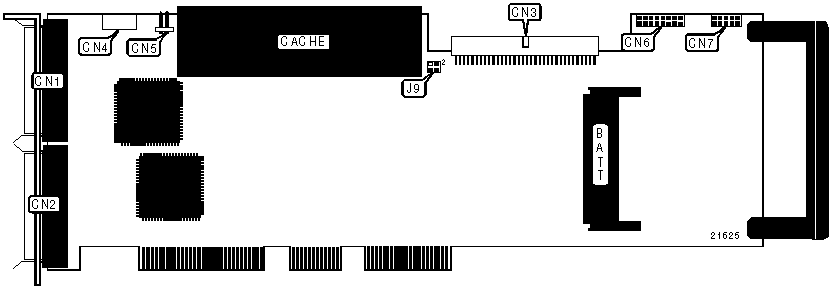

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------+-------+-------------------+-------|
| Battery back-up cache | BATT | DASD status | CN4 |
| connector | | connector | |
|------------------------+-------+-------------------+-------|
| 68-pin SCSI connector | CN1 | 2-pin connector - | CN5 |
| Ch. 2 - external | | drive active LED | |
|------------------------+-------+-------------------+-------|
| 68-pin SCSI connector | CN2 | 16-pin game | CN6 |
| Ch. 1 - external | | connector | |
|------------------------+-------+-------------------+-------|
| 68-pin SCSI connector | CN3 | 10-pin serial | CN7 |
| Ch. 3 - internal | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DOWNLOAD VIA BOOTBLOCK |
|------------------------------------------------------------|
| Function | J6 |
|-------------------------------------+----------------------|
| ยป Download via bootblock disabled | Open |
|-------------------------------------+----------------------|
| Download via bootblock enabled | Pins 1 & 2, 3 & 4 |
| | closed |
|-------------------------------------+----------------------|
| Download via bootblock enabled | Pins 1 & 3, 2 & 4 |
| (secondary option) | closed |
|------------------------------------------------------------|
| Note: Jumpers should only be installed if download by code |
| block fails |
+------------------------------------------------------------+
