       # INITIO CORPORATION

          INI-9100UW MAC

          Card Type               Hard drive controller card
          Hard Drives supported   Up to 15 SCSI devices
          Floppy drives supported None
          Data Bus                32-bit PCI
          Card Size               Half-length, half-height card

   IMG IMG 1


          +------------------------------------------------------------+

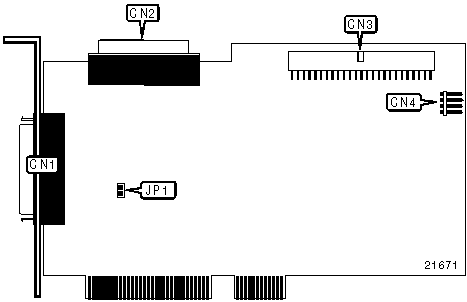

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |      Function      | Location |    Function     | Location |
          |--------------------+----------+-----------------+----------|
          | UltraWide SCSI     |   CN1    | 50-pin SCSI     |   CN3    |
          | connector -        |          | connector -     |          |
          | external           |          | internal        |          |
          |--------------------+----------+-----------------+----------|
          | UltraWide SCSI     |   CN2    | 4-pin connector |   CN4    |
          | connector -        |          | - drive active  |          |
          | internal           |          | LED             |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |              Function               | Label |   Position   |
          |-------------------------------------+-------+--------------|
          | ยป | Factory configured - do not     |  JP1  | Unidentified |
          |   | alter                           |       |              |
          +------------------------------------------------------------+
