# INITIO CORPORATION
INI-9200U
Card Type Hard drive controller card
Hard Drives supported Up to 7 SCSI devices
Floppy drives supported None
Data Bus 32-bit PCI
Card Size Three-quarter length, full-height card
IMG IMG 1
+------------------------------------------------------------+

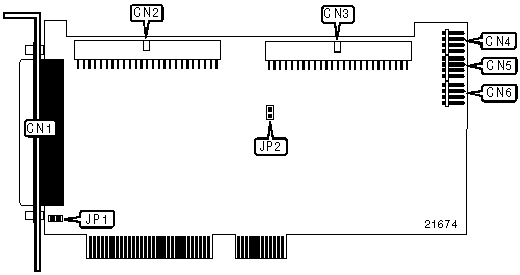

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location | Function | Location |
|----------------------+----------+---------------+----------|
| 50-pin ultra SCSI | CN1 | Channel A LED | CN4 |
| connector - external | | connector | |
|----------------------+----------+---------------+----------|
| 50-pin ultra SCSI | CN2 | Channel B LED | CN5 |
| connector - internal | | connector | |
|----------------------+----------+---------------+----------|
| 50-pin ultra SCSI | CN3 | Global LED | CN6 |
| connector - internal | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-----------------------------------------+-------+----------|
| » | Auto termination for multiple | JP1 | Closed |
| | initiators enabled | | |
|---+-------------------------------------+-------+----------|
| | Auto termination for multiple | JP1 | Open |
| | initiators disabled | | |
|---+-------------------------------------+-------+----------|
| » | Auto termination for multiple | JP2 | Closed |
| | initiators enabled | | |
|---+-------------------------------------+-------+----------|
| | Auto termination for multiple | JP2 | Open |
| | initiators disabled | | |
+------------------------------------------------------------+
