# ORCHID TECHNOLOGY
SUPER IDE/VLB CONTROLLER
+------------------------------------------------------------+
|------------------------------------------------------------|
| Data bus: | 32-bit VL-bus |
|-------------------+----------------------------------------|
| Size: | Three-quarter length, full-height card |
|-------------------+----------------------------------------|
| Hard drive | Two IDE(AT) drives |
| supported: | |
|-------------------+----------------------------------------|
| Floppy drives | Two 360KB, 720KB, 1.2MB, or 1.44MB |
| supported: | drives |
+------------------------------------------------------------+
IMG IMG 1
+------------------------------------------------------------+

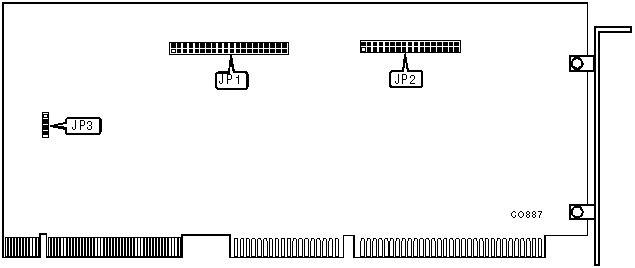

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|------------------------------------------+-----------------|
| 40-pin IDE(AT) connector | JP1 |
|------------------------------------------+-----------------|
| 34-pin cable connector - floppy drive | JP2 |
|------------------------------------------+-----------------|
| 4-pin connector - drive active LED | JP3 |
+------------------------------------------------------------+
