       # MYLEX CORPORATION

          DAC960PL

          Processor               RISC
          Maximum Onboard Memory  4/8/16/32MB DRAM (n x 36)
          Data Bus                32-bit PCI
          Card Size               Full-length, full-height card
          Hard Drives supported   Up to 45 Fast/Wide SCSI-2 devices
          Floppy Drives supported None
          RAID Levels supported   0,1,5, and 0+1

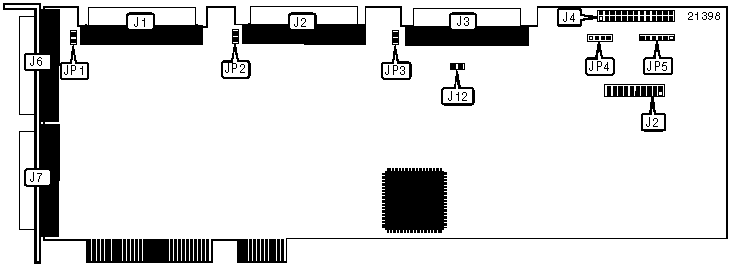

   IMG IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |      Function      | Location |    Function     | Location |
          |--------------------+----------+-----------------+----------|
          | 68-pin SCSI        |    J1    | 10-pin          |    J5    |
          | connector -        |          | connector -     |          |
          | channel 0 internal |          | battery backup  |          |
          |                    |          | (optional)      |          |
          |--------------------+----------+-----------------+----------|
          | 68-pin SCSI        |    J2    | 68-pin SCSI     |    J6    |
          | connector -        |          | connector -     |          |
          | channel 1 internal |          | channel 0       |          |
          |                    |          | external        |          |
          |--------------------+----------+-----------------+----------|
          | 68-pin SCSI        |    J3    | 68-pin SCSI     |    J7    |
          | connector -        |          | connector -     |          |
          | channel 2 internal |          | channel 1       |          |
          |                    |          | external        |          |
          |--------------------+----------+-----------------+----------|
          | 26-pin connector - |    J4    | 6-pin connector |   JP5    |
          | AEMI port          |          | - bus/drive     |          |
          |                    |          | active LED      |          |
          |------------------------------------------------------------|
          | Note: AEMI is the acronym for Array Enclosure Management   |
          | Interface.                                                 |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                USER CONFIGURABLE SETTINGS                 ||
          |-----------------------------------------------------------||
          |             Function              | Label  |   Position   ||
          |-----------------------------------+--------+--------------||
          | » | Factory configured - do not   |  JP4   | Unidentified ||
          |   | alter                         |        |              ||
          |---+-------------------------------+--------+--------------||
          | » | SCSI channel 0 termination    |   J1   |    Closed    ||
          |   | enabled                       |        |              ||
          |---+-------------------------------+--------+--------------||
          |   | SCSI channel 0 termination    |   J1   |     Open     ||
          |   | disabled                      |        |              ||
          |---+-------------------------------+--------+--------------||
          | » | SCSI channel 1 termination    |   J2   |    Closed    ||
          |   | enabled                       |        |              ||
          |---+-------------------------------+--------+--------------||
          |   | SCSI channel 1 termination    |   J2   |     Open     ||
          |   | disabled                      |        |              ||
          |---+-------------------------------+--------+--------------||
          | » | SCSI channel 2 termination    |   J3   |    Closed    ||
          |   | enabled                       |        |              ||
          |---+-------------------------------+--------+--------------||
          |   | SCSI channel 2 termination    |   J3   |     Open     ||
          |   | disabled                      |        |              ||
          |---+--------------------------------------------------------|
          |   |      Enable termination on a SCSI channel if the       |
          |   |      controller is installed at one end of that        |
          |   |      channel. This setting terminates the channel and  |
          |   |      power s its SCSI TERMPWR signal.                  |
          |   |                                                        |
          |   |      Disable termination on a SCSI channel if the      |
          |   |      controller is not at the end of that channel      |
          |   |      (both external and internal devices exist on the  |
          |   |      same channel).                                    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          |      LED       | Status |            Condition             |
          |----------------+--------+----------------------------------|
          | JP5/pins 1 & 2 |   On   |          SCSI is active          |
          |                |        |                                  |
          |                |        |          (Data is being          |
          |                |        | transmitted/received across SCSI |
          |                |        |            channels)             |
          |----------------+--------+----------------------------------|
          | JP5/pins 1 & 2 |  Off   |         No SCSI activity         |
          |----------------+--------+----------------------------------|
          | JP5/pins 3 & 4 |   On   |          PCI is active           |
          |                |        |                                  |
          |                |        |          (Data is being          |
          |                |        |   transmitted/received to/from   |
          |                |        |              host)               |
          |----------------+--------+----------------------------------|
          | JP5/pins 3 & 4 |  Off   |         No PCI activity          |
          |----------------+--------+----------------------------------|
          | JP5/pins 5 & 6 |   On   |         Write is pending         |
          |                |        |                                  |
          |                |        | (Cache holds data that needs to  |
          |                |        |       be written to disk)        |
          |----------------+--------+----------------------------------|
          | JP5/pins 5 & 6 |  Off   |       No write is pending        |
          |------------------------------------------------------------|
          | Note: If the system loses power or is reset while JP6/pins |
          | 5 & 6 are on, the data in cache memory will be lost.       |
          | Install the optional cache batter backup module J2 to      |
          | avoid data loss.                                           |
          +------------------------------------------------------------+
