# PROMISE TECHNOLOGY, INC.
DC4030VL-2 (REV.2)
+------------------------------------------------------------+
|------------------------------------------------------------|
| Data bus: | 32-bit, VL-bus |
|---------------+--------------------------------------------|
| Size: | Three/quarter-length, full-height card |
|---------------+--------------------------------------------|
| Hard drive | Four IDE (AT) interface drives |
| supported: | |
|---------------+--------------------------------------------|
| Floppy drives | Four 360KB, 720KB, 1.2MB, 1.44MB, or |
| supported: | 2.88MB drives |
+------------------------------------------------------------+
IMG IMG 1
+------------------------------------------------------------+

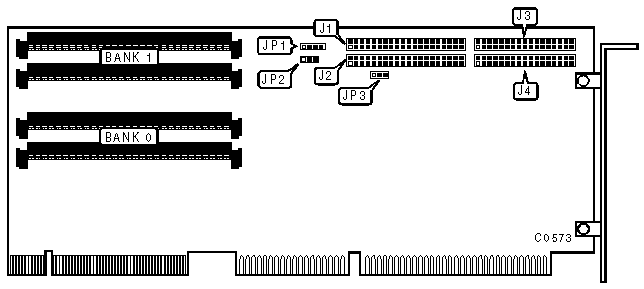

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|-------------------------------------------------+----------|
| 40-pin IDE (AT) Interface connector - IDE 0, 1 | J1 |
|-------------------------------------------------+----------|
| 40-pin IDE (AT) Interface connector - IDE 2, 3 | J2 |
|-------------------------------------------------+----------|
| 34-pin control cable connector - floppy drive - | J3 |
| Floppy 0, 1 | |
|-------------------------------------------------+----------|
| 34-pin control cable connector - floppy drive - | J4 |
| Floppy 2, 3 | |
|-------------------------------------------------+----------|
| 4-pin connector - drive active LED | JP1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|------------------------------------+----------+------------|
| » | Factory configured - do not | JP2 | pins 2 & 3 |
| | alter | | closed |
|---+--------------------------------+----------+------------|
| » | Floppy drive enabled | JP3 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Floppy drive disabled | JP3 | pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTES |
|------------------------------------------------------------|
| At least one pair of SIMMs of equal memory size (256KB, |
| 1MB or 4MB of 70ns or faster) must be installed in Bank 0 |
| for the DC4030VL-2 to function. |
+------------------------------------------------------------+
