# RELIALOGIC CORPORATION PRIVATE, LTD.
CA9342F
+------------------------------------------------------------+
|------------------------------------------------------------|
| Data bus: | 16-bit ISA |
|-------------------+----------------------------------------|
| Size: | Half-length, half-height card |
|-------------------+----------------------------------------|
| Hard drive | Four IDE(AT) drives |
| supported: | |
|-------------------+----------------------------------------|
| Floppy drives | Two 360KB, 720KB, 1.2MB, or 1.44MB |
| supported: | drives |
+------------------------------------------------------------+
IMG IMG 1
+------------------------------------------------------------+

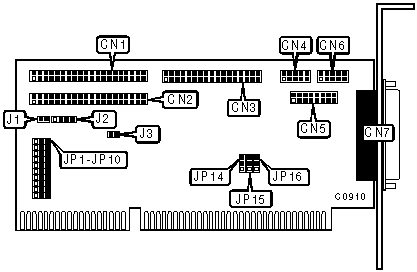

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|------------------------------------------+-----------------|
| 40-pin primary IDE(AT) connector | CN1 |
|------------------------------------------+-----------------|
| 40-pin secondary IDE(AT) connector | CN2 |
|------------------------------------------+-----------------|
| 34-pin cable connector - floppy drive | CN3 |
|------------------------------------------+-----------------|
| 10-pin serial port 2 - internal | CN4 |
|------------------------------------------+-----------------|
| 16-pin game port | CN5 |
|------------------------------------------+-----------------|
| 10-pin serial port 1- internal | CN6 |
|------------------------------------------+-----------------|
| 25-pin parallel port - external | CN7 |
|------------------------------------------+-----------------|
| 2-pin connector - drive active LED | J1 |
|------------------------------------------+-----------------|
| 4-pin connector - drive active LED | J2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|------------------------------------+----------+------------|
| » | Game port enabled | JP3 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Game port disabled | JP3 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Parallel Port LPT1(378-37F) | JP6 | pins 1 & 2 |
| | select | | closed |
|---+--------------------------------+----------+------------|
| | Parallel Port LPT2(278-27F) | JP6 | pins 2 & 3 |
| | select | | closed |
|---+--------------------------------+----------+------------|
| » | Floppy drive interface enabled | JP7 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Floppy drive interface | JP7 | pins 2 & 3 |
| | disabled | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS CONTINUED |
|------------------------------------------------------------|
| Function | Location | Setting |
|------------------------------------+----------+------------|
| » | Primary IDE(AT) interface | JP8 | pins 1 & 2 |
| | enabled | | closed |
|---+--------------------------------+----------+------------|
| | Primary IDE(AT) interface | JP8 | pins 2 & 3 |
| | disabled | | closed |
|---+--------------------------------+----------+------------|
| » | Factory configured - do not | JP14 | N/A |
| | alter | | |
|---+--------------------------------+----------+------------|
| » | Secondary IDE(AT) interface | JP15 | pins 1 & 2 |
| | enabled | | closed |
|---+--------------------------------+----------+------------|
| | Secondary IDE(AT) interface | JP15 | pins 2 & 3 |
| | disabled | | closed |
|---+--------------------------------+----------+------------|
| » | Factory configured - do not | JP16 | N/A |
| | alter | | |
|---+--------------------------------+----------+------------|
| » | IOCHRDY signal disabled | J3 | Open |
|---+--------------------------------+----------+------------|
| | IOCHRDY signal enabled | J3 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 1 ADDRESS SELECTION |
|------------------------------------------------------------|
| COM | JP4 | JP5 |
|------------------+--------------------+--------------------|
| » | COM1 | pins 1 & 2 closed | pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| | COM3 | pins 2 & 3 closed | pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| | Disabled | N/A | pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 2 ADDRESS SELECTION |
|------------------------------------------------------------|
| COM | JP1 | JP2 |
|------------------+--------------------+--------------------|
| » | COM2 | pins 1 & 2 closed | pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| | COM4 | pins 2 & 3 closed | pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| | Disabled | N/A | pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT MODE CONFIGURATION |
|------------------------------------------------------------|
| Mode | JP9 | JP10 |
|----------------+---------------------+---------------------|
| » | Standard | pins 1 & 2 closed | pins 2 & 3 closed |
|---+------------+---------------------+---------------------|
| | EPP | pins 2 & 3 closed | pins 1 & 2 closed |
|---+------------+---------------------+---------------------|
| | ECP | pins 1 & 2 closed | pins 1 & 2 closed |
|---+------------+---------------------+---------------------|
| | Disabled | pins 2 & 3 closed | pins 2 & 3 closed |
+------------------------------------------------------------+
