# TOOLMAKER, INC.
TIE-1200
+------------------------------------------------------------+
|------------------------------------------------------------|
| Data bus: | 16-bit, ISA |
|--------------------------+---------------------------------|
| Size: | Full-length, full-height card |
|--------------------------+---------------------------------|
| Hard drive supported: | Up to seven SCSI devices |
|--------------------------+---------------------------------|
| Floppy drives supported: | None |
+------------------------------------------------------------+
IMG IMG 1
+------------------------------------------------------------+

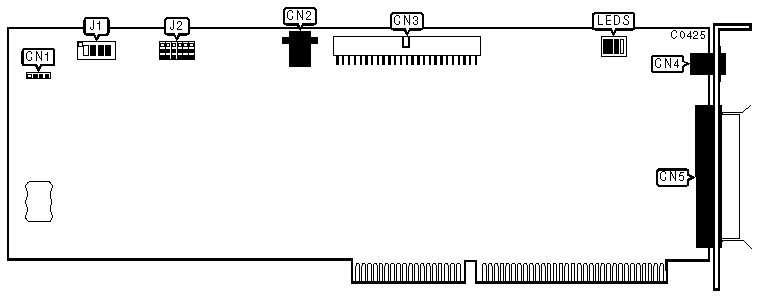

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|-------------------------------------------------+----------|
| 4-pin connector - Drive active LED | CN1 |
|-------------------------------------------------+----------|
| 4-pin RJ11 Chipcard Reader connector - internal | CN2 |
|-------------------------------------------------+----------|
| 50-pin SCSI connector - internal | CN3 |
|-------------------------------------------------+----------|
| 4-pin RJ11 Chipcard Reader connector - external | CN4 |
|-------------------------------------------------+----------|
| 50-pin SCSI connector - external | CN5 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|--------------------------------+--------------+------------|
| » | I/O port address is 310h | J1/switch 1 | on |
|---+----------------------------+--------------+------------|
| | I/O port address is 350h | J1/switch 1 | off |
|---+----------------------------+--------------+------------|
| » | TTL Chipcard Reader | J2/jumpers 1 | pins 1 & 2 |
| | enabled | - 6 | closed |
|---+----------------------------+--------------+------------|
| | RS-232 Chipcard Reader | J2/jumpers 1 | pins 2 & 3 |
| | enabled | - 6 | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| STATUS LEDS |
|------------------------------------------------------------|
| Status | LED 4 | LED 3 | LED 2 | LED 1 |
|----------------------------+-------+-------+-------+-------|
| Reset after power on | on | on | on | on |
|----------------------------+-------+-------+-------+-------|
| RAM test | on | on | on | off |
|----------------------------+-------+-------+-------+-------|
| DES chip test | on | on | off | on |
|----------------------------+-------+-------+-------+-------|
| Internal software test | on | on | off | off |
|----------------------------+-------+-------+-------+-------|
| TIE-1200 in download mode | on | off | on | on |
|----------------------------+-------+-------+-------+-------|
| Download mode (service) | on | off | on | off |
|----------------------------+-------+-------+-------+-------|
| Wrong transaction number | on | off | off | on |
|----------------------------+-------+-------+-------+-------|
| Download post processing | on | off | off | off |
|----------------------------+-------+-------+-------+-------|
| Internal program start | off | on | on | on |
|----------------------------+-------+-------+-------+-------|
| Software loaded | off | on | on | off |
|----------------------------+-------+-------+-------+-------|
| TIE diagnostic information | off | on | off | on |
|----------------------------+-------+-------+-------+-------|
| TIE diagnostic information | off | on | off | off |
|----------------------------+-------+-------+-------+-------|
| TIE diagnostic information | off | off | on | on |
|----------------------------+-------+-------+-------+-------|
| TIE diagnostic information | off | off | on | off |
|----------------------------+-------+-------+-------+-------|
| TIE-1200 installed | off | off | off | on |
| (blinking LED) | | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTES |
|------------------------------------------------------------|
| J1/switches 2 - 4 are factory-configured to "on" position |
| - do not alter. |
+------------------------------------------------------------+
