# TEKRAM TECHNOLOGY CO., LTD.
DC-600B
+------------------------------------------------------------+
|------------------------------------------------------------|
| Data bus: | 16-bit, ISA |
|-------------------+----------------------------------------|
| Size: | Three/quarter-length, full-height card |
|-------------------+----------------------------------------|
| Hard drive | Four IDE (AT) Interface drives |
| supported: | |
|-------------------+----------------------------------------|
| Floppy drives | Two 360KB, 720KB, 1.2MB, or 1.44MB |
| supported: | drives |
+------------------------------------------------------------+
IMG IMG 1
+------------------------------------------------------------+

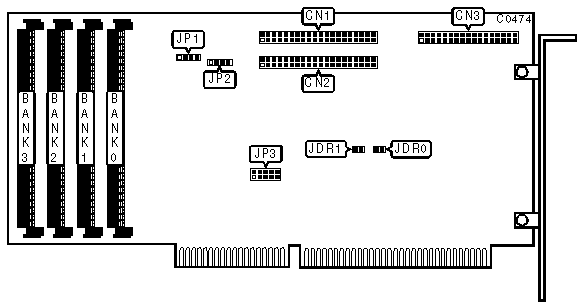

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|-----------------------------------------------+------------|
| 40-pin IDE (AT) Interface connector - IDE-0 | CN1 |
|-----------------------------------------------+------------|
| 40-pin IDE (AT) Interface connector - IDE-1 | CN2 |
|-----------------------------------------------+------------|
| 34-pin control cable connector - floppy drive | CN3 |
|-----------------------------------------------+------------|
| 4-pin connector - drive active LED | JP1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|--------------------------------------+-----------+---------|
| » | IDE-0 damping resistor enabled | JDR0 | open |
|---+----------------------------------+-----------+---------|
| | IDE-0 damping resistor disabled | JDR0 | closed |
|---+----------------------------------+-----------+---------|
| » | IDE-1 damping resistor enabled | JDR1 | open |
|---+----------------------------------+-----------+---------|
| | IDE-1 damping resistor disabled | JDR1 | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIOS ADDRESS |
|------------------------------------------------------------|
| Address | JP3/jumper 1 | JP3/jumper 2 | JP3/jumper 3 |
|---------------+--------------+--------------+--------------|
| » | DC000h | closed | closed | closed |
|---+-----------+--------------+--------------+--------------|
| | DC000h | closed | closed | open |
|---+-----------+--------------+--------------+--------------|
| | D8000h | closed | open | closed |
|---+-----------+--------------+--------------+--------------|
| | D4000h | closed | open | open |
|---+-----------+--------------+--------------+--------------|
| | D0OO0h | open | closed | closed |
|---+-----------+--------------+--------------+--------------|
| | CC000h | open | closed | open |
|---+-----------+--------------+--------------+--------------|
| | C8000h | open | open | closed |
|---+-----------+--------------+--------------+--------------|
| | Disabled | open | open | open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|-----------------------------------+--------------+---------|
| » | Floppy drive enabled | JP3/jumper 4 | closed |
|---+-------------------------------+--------------+---------|
| | Floppy drive disabled | JP3/jumper 4 | open |
|---+-------------------------------+--------------+---------|
| » | Hard drive port address is | JP3/jumper 5 | closed |
| | 1F0-1F7h | | |
|---+-------------------------------+--------------+---------|
| | Hard drive port address is | JP3/jumper 5 | open |
| | 170-177h | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTES |
|------------------------------------------------------------|
| At least one SIMM memory module (256KB, 1MB, or 4MB) must |
| be installed in order for the controller to function. |
| Different sizes can be mixed in any combinaion. JP2 is |
| reserved - do not alter. |
+------------------------------------------------------------+
