# SYMBIOS LOGIC
NCR8250S
+------------------------------------------------------------+
|------------------------------------------------------------|
| Data bus: | 32-bit, PCI |
|--------------------------+---------------------------------|
| Size: | Half-length, full-height card |
|--------------------------+---------------------------------|
| Hard drive supported: | Up to 15 SCSI interface drives |
|--------------------------+---------------------------------|
| Floppy drives supported: | None |
+------------------------------------------------------------+
IMG IMG 1
+------------------------------------------------------------+

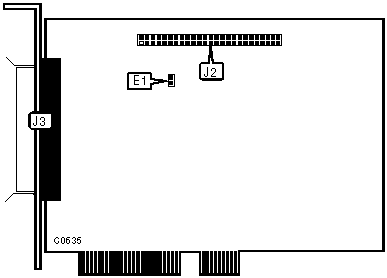

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|-----------------------------------------------+------------|
| 50-pin low-density SCSI interface - internal | J2 |
|-----------------------------------------------+------------|
| 50-pin high-density SCSI interface - external | J3 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|-------------------------------+--------------+-------------|
| SCSI single-ended active | E1 | closed |
| termination - enabled | | |
|-------------------------------+--------------+-------------|
| SCSI single-ended active | E1 | open |
| termination - disabled | | |
|------------------------------------------------------------|
| Note:You must disable SCSI termination when connecting |
| both internal & external SCSI interfaces. |
+------------------------------------------------------------+
