# SIIG, INC.
SI-1132+
+------------------------------------------------------------+
|------------------------------------------------------------|
| Data bus: | 16-bit, ISA |
|---------------+--------------------------------------------|
| Size: | Half-length, full-height card |
|---------------+--------------------------------------------|
| Hard drive | Two IDE (AT) Interface drives |
| supported: | |
|---------------+--------------------------------------------|
| Floppy drives | Two 360KB, 720KB, 1.2MB, 1.44MB, or 2.88MB |
| supported: | drives |
+------------------------------------------------------------+
IMG IMG 1
+------------------------------------------------------------+

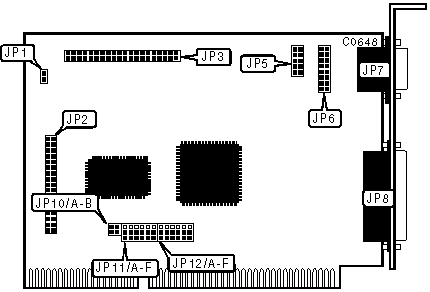

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|-----------------------------------------------+------------|
| 2-pin connector - drive active LED | JP1 |
|-----------------------------------------------+------------|
| 34-pin control cable connector - floppy drive | JP2 |
|-----------------------------------------------+------------|
| 40-pin IDE(AT) Interface connector | JP3 |
|-----------------------------------------------+------------|
| 10-pin serial port 2 - internal | JP5 |
|-----------------------------------------------+------------|
| 16-pin game port - internal | JP6 |
|-----------------------------------------------+------------|
| 9-pin serial port - external | JP7 |
|-----------------------------------------------+------------|
| 25-pin parallel port - external | JP8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| » Function | Location | Setting |
|------------------------------------+-------------+---------|
| » | Parallel port uni-directional | JP10/A | closed |
|---+--------------------------------+-------------+---------|
| » | Parallel port bi-directional | JP10/A | open |
|---+--------------------------------+-------------+---------|
| » | Game port enabled | JP10/B | closed |
|---+--------------------------------+-------------+---------|
| » | Game port disabled | JP10/B | open |
|---+--------------------------------+-------------+---------|
| » | Floppy controller enabled | JP11/A pins | closed |
| | | 1 & 2 | |
|---+--------------------------------+-------------+---------|
| » | Floppy controller disabled | JP11/A pins | closed |
| | | 2 & 3 | |
|---+--------------------------------+-------------+---------|
| » | IDE (AT) interface enabled | JP11/B pins | closed |
| | | 1 & 2 | |
|---+--------------------------------+-------------+---------|
| » | IDE (AT) interface disabled | JP11/B pins | closed |
| | | 2 & 3 | |
|---+--------------------------------+-------------+---------|
| » | Floppy drive order A:, B: | JP11/C pins | closed |
| | normal | 1 & 2 | |
|---+--------------------------------+-------------+---------|
| » | Floppy drive order A:, B: | JP11/C pins | closed |
| | exchange | 2 & 3 | |
|---+--------------------------------+-------------+---------|
| » | Serial port 1 IRQ4 select | JP11/D pins | closed |
| | | 1 & 2 | |
|---+--------------------------------+-------------+---------|
| » | Serial port 1 IRQ3 select | JP11/D pins | closed |
| | | 2 & 3 | |
|---+--------------------------------+-------------+---------|
| » | Serial port 2 IRQ3 select | JP11/E pins | closed |
| | | 1 & 2 | |
|---+--------------------------------+-------------+---------|
| » | Serial port 2 IRQ4 select | JP11/E pins | closed |
| | | 2 & 3 | |
|---+--------------------------------+-------------+---------|
| » | Parallel port IRQ7 select | JP11/F pins | closed |
| | | 2 & 3 | |
|---+--------------------------------+-------------+---------|
| » | Parallel port IRQ5 select | JP11/F pins | closed |
| | | 1 & 2 | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 1 CONFIGURATION |
|------------------------------------------------------------|
| » COM | JP12/A | JP12/B |
|------------------+--------------------+--------------------|
| » | COM1 (3F8h) | pins 1 & 2 closed | pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| » | COM3 (3E8h) | pins 2 & 3 closed | pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| » | Disabled | pins 2 & 3 closed | pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 2 CONFIGURATION |
|------------------------------------------------------------|
| » COM | JP12/C | JP12/D |
|------------------+--------------------+--------------------|
| » | COM2 (2F8h) | pins 1 & 2 closed | pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| » | COM4 (2E8h) | pins 2 & 3 closed | pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| » | Disabled | pins 2 & 3 closed | pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT CONFIGURATION |
|------------------------------------------------------------|
| » LPT | JP12/E | JP12/F |
|------------------+--------------------+--------------------|
| » | LPT2 (378h) | pins 1 & 2 closed | pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| » | LPT1 (3BCh) | pins 2 & 3 closed | pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| » | LPT3 (278h) | pins 2 & 3 closed | pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| » | Disabled | pins 1 & 2 closed | pins 2 & 3 closed |
+------------------------------------------------------------+
