# FUTURE DOMAIN CORPORATION
IDE-32000
Data Bus 32-bit VESA Local Bus
Card Size Three-quarter length, half-height card
Hard Drives Four EIDE drives
supported
Floppy drives Two 360KB, 720KB, 1.2MB, 1.44MB or 2.88MB drives
supported
IMG IMG 1
+------------------------------------------------------------+

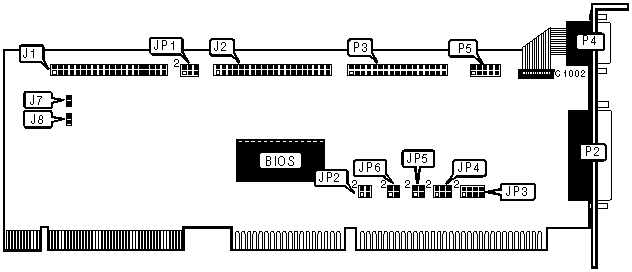

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location | Function | Location |
|-------------------+----------+------------------+----------|
| 40-pin primary | J1 | 25-pin parallel | P2 |
| IDE(AT) connector | | port - external | |
|-------------------+----------+------------------+----------|
| 40-pin secondary | J2 | 34-pin cable | P3 |
| IDE(AT) connector | | connector - | |
| | | floppy drive | |
|-------------------+----------+------------------+----------|
| 2-pin connector - | J7 | 9-pin serial | P4 |
| drive active LED | | port 1 - | |
| | | external | |
|-------------------+----------+------------------+----------|
| 2-pin connector - | J8 | 10-pin serial | P5 |
| drive active LED | | port 2 - | |
| | | internal | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|--------------------------------+------------+--------------|
| » | Factory configured - do | JP1/pins 3 | Unidentified |
| | not alter | & 4 | |
|---+----------------------------+------------+--------------|
| » | Primary IDE interface | JP2/pins 1 | Closed |
| | IRQ14 select | & 2 | |
|---+----------------------------+------------+--------------|
| » | Secondary IDE interface | JP2/pins 3 | Closed |
| | IRQ15 select | & 4 | |
|---+----------------------------+------------+--------------|
| » | Serial port 1 COM1 IRQ4 | JP6/pins 1 | Closed |
| | select | & 2 | |
|---+----------------------------+------------+--------------|
| » | Serial port 2 COM2 IRQ3 | JP6/pins 3 | Closed |
| | select | & 4 | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DMA CHANNEL SELECTION |
|------------------------------------------------------------|
| Channel | JP4 |
|-------------------------+----------------------------------|
| | 1 | Pins 1 & 3, 4 & 6 closed |
|---+---------------------+----------------------------------|
| | 3 | Pins 2 & 4, 3 & 5 closed |
|---+---------------------+----------------------------------|
| » | Disabled | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PRIMARY IDE CHANNEL SELECTION |
|------------------------------------------------------------|
| Channel | JP1/pins 1 & 2 | JP1/pins 5 & 6 |
|--------------------------+----------------+----------------|
| » | IDE(AT) primary | Closed | Open |
| | interface enabled | | |
|---+----------------------+----------------+----------------|
| | IDE(AT) primary | Closed | Closed |
| | interface disabled | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIOS ADDRESS SELECTION |
|------------------------------------------------------------|
| Address | JP3 |
|---------------------+--------------------------------------|
| » | C800-C9FFh | Pins 1 & 2, 3 & 4, 7 & 8 closed |
|---+-----------------+--------------------------------------|
| | CC00-CDFFh | Pins 1 & 2, 7 & 8 closed |
|---+-----------------+--------------------------------------|
| | D000-D1FFh | Pins 1 & 2, 3 & 4, 5 & 6 closed |
|---+-----------------+--------------------------------------|
| | D400-D5FFh | Pins 1 & 2, 5 & 6 closed |
|---+-----------------+--------------------------------------|
| | D800-D9FFh | Pins 1 & 2, 3 & 4 closed |
|---+-----------------+--------------------------------------|
| | DC00-DDFFh | Pins 1 & 2 closed |
|---+-----------------+--------------------------------------|
| | Disabled | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT INTERRUPT SELECTION |
|------------------------------------------------------------|
| IRQ | JP5/pins 1 & 2 | JP5/pins 3 & 4 |
|------------------+--------------------+--------------------|
| » | IRQ7 | Closed | Open |
|---+--------------+--------------------+--------------------|
| | IRQ5 | Open | Closed |
+------------------------------------------------------------+
