# STORAGE DIMENSIONS
SDC3222WB
Card Type Hard drive controller card
Hard drives supported Up to sixteen SCSI-2 Wide devices
Floppy drives supported Two 360KB, 720KB, 1.2MB, 1.44MB drives
Data-bus 32-bit EISA
Size Half-length, full-height card

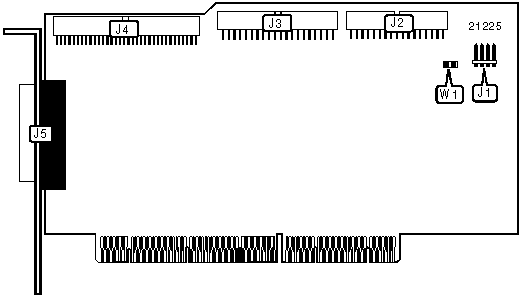

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------------+-------+-------------+-------|
| 4-pin connector - drive | J1 | 68-pin SCSI | J4 |
| active LED | | connector - | |
| | | internal | |
|------------------------------+-------+-------------+-------|
| 34-pin cable connector - | J2 | 68-pin SCSI | J5 |
| floppy drive | | connector - | |
| | | external | |
|------------------------------+-------+-------------+-------|
| 50-pin SCSI connector - | J3 | | |
| internal | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE CONNECTIONS |
|------------------------------------------------------------|
| Function | Location | Setting |
|--------------------------------------+-----------+---------|
| ยป | Floppy drive interface disabled | W1 | Open |
|---+----------------------------------+-----------+---------|
| | Floppy drive interface enabled | W1 | Closed |
+------------------------------------------------------------+
