# SIIG, INC.
WIDE SCSI PRO GOLD
Data Bus 32-bit PCI
Card Size Half-length, full-height card
Hard Drives supported Up to 7 SCSI-2 Wide devices
Floppy drives supported None
IMG IMG 1
+------------------------------------------------------------+

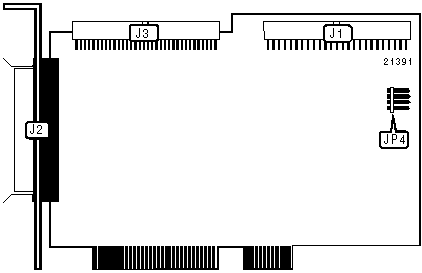

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location | Function | Location |
|-------------+----------+------------------------+----------|
| 50-pin SCSI | J1 | 68-pin SCSI connector | J3 |
| connector - | | - external | |
| external | | | |
|-------------+----------+------------------------+----------|
| 68-pin SCSI | J2 | 4-pin connector - | JP4 |
| connector - | | drive active LED | |
| external | | | |
+------------------------------------------------------------+
