# TANDY/RADIO SHACK
250-1095
Card type Hard drive controller
Hard Drives supported Two IDE (AT) drives
Floppy drives supported None
Data Bus 8-bit ISA
Card Size Full-length, full-height card

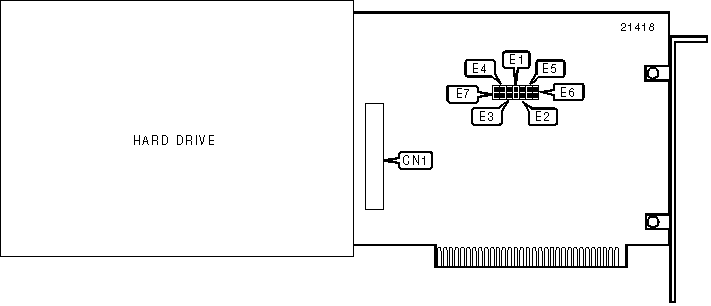

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|----------------------------------+-------------------------|
| 40-pin primary IDE(AT) connector | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------------+-------+-----------|
| » | Factory configured - do not alter | E3 | Open |
|---+------------------------------------+-------+-----------|
| » | Factory configured - do not alter | E4 | Open |
|---+------------------------------------+-------+-----------|
| » | Factory configured - do not alter | E5 | Open |
|---+------------------------------------+-------+-----------|
| » | Factory configured - do not alter | E6 | Open |
|---+------------------------------------+-------+-----------|
| » | Factory configured - do not alter | E7 | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIOS ADDRESS SELECTION |
|------------------------------------------------------------|
| Address | E1 | E2 |
|----------------------+------------------+------------------|
| » | C8000h | Open | Open |
|---+------------------+------------------+------------------|
| | CA000h | Closed | Open |
|---+------------------+------------------+------------------|
| | CC000h | Open | Closed |
|---+------------------+------------------+------------------|
| | CE000h | Closed | Closed |
+------------------------------------------------------------+
