# UNIDENTIFIED
IDE/FCD MULTI-I/O
Data bus: 16-bit, ISA
Size: Half-length, full-height card
Hard drives supported: Two AT Interface (IDE) drives
Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB
Special features Two serial and one parallel port

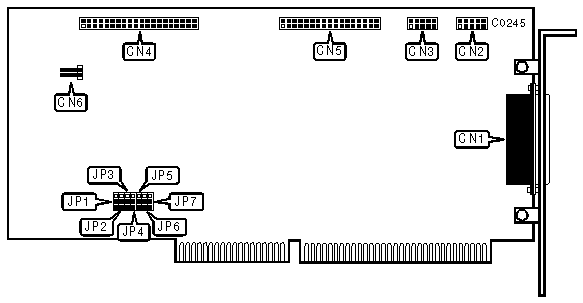

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|-------------------------------------------------+----------|
| 25-pin parallel port (LPT1/2)-external | CN1 |
|-------------------------------------------------+----------|
| 9-pin serial port (COM1/3)-internal | CN2 |
|-------------------------------------------------+----------|
| 9-pin serial port (COM2/4)-internal | CN3 |
|-------------------------------------------------+----------|
| 40-pin AT Interface (IDE) control cable | CN4 |
| connector-internal | |
|-------------------------------------------------+----------|
| 34-pin control cable connector-hard drive | CN5 |
|-------------------------------------------------+----------|
| 2-pin connector-drive active LED | CN6 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|------------------------------------+----------+------------|
| » | Floppy drive enabled | JP1 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Floppy drive disabled | JP1 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Parallel port address is 378h | JP2 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Parallel port address is 278h | JP2 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Parallel port disabled | JP2 | open |
|---+--------------------------------+----------+------------|
| » | Serial port 1 (COM1) address | JP3 | pins 1 & 2 |
| | is 3F8h | | closed |
|---+--------------------------------+----------+------------|
| | Serial port 1 (COM3) address | JP3 | pins 2 & 3 |
| | is 3E8h | | closed |
|---+--------------------------------+----------+------------|
| | Serial port 1 disabled | JP3 | open |
|---+--------------------------------+----------+------------|
| » | Serial port 2 (COM2) address | JP4 | pins 1 & 2 |
| | is 2F8h | | closed |
|---+--------------------------------+----------+------------|
| | Serial port 2 (COM4) address | JP4 | pins 2 & 3 |
| | is 2E8h | | closed |
|---+--------------------------------+----------+------------|
| | Serial port 2 disabled | JP4 | open |
|---+--------------------------------+----------+------------|
| » | Hard drive enabled | JP5 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Hard drive disabled | JP5 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | IRQ14 | JP6 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | IRQ15 | JP6 | pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
