# ULTRASTOR CORPORATION
ULTRA24F
+------------------------------------------------------------+
+------------------------------------------------------------+
Data bus: 32-bit, EISA
Size: Full-length, half-height card
Hard drives supported: Up to seven SCSI devices
Floppy drives supported: Three 360KB, 720KB, 1.2MB, or 1.44MB
drives
IMG IMG 1
+------------------------------------------------------------+

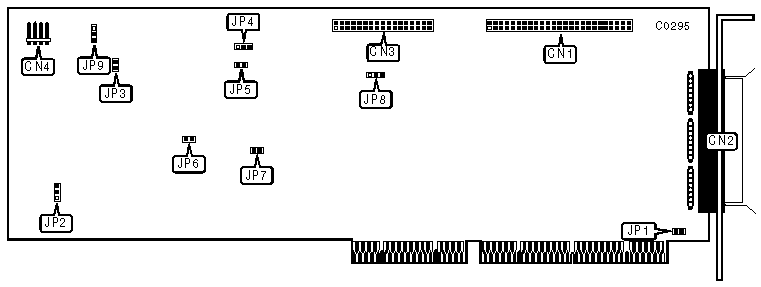

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|--------------------------------------------+---------------|
| 50-pin SCSI cable connector-internal | CN1 |
|--------------------------------------------+---------------|
| 50-pin SCSI cable connector-external | CN2 |
|--------------------------------------------+---------------|
| 34-pin data cable connector | CN3 |
|--------------------------------------------+---------------|
| 4-pin connector-drive active LED | CN4 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|------------------------------------+----------+------------|
| » | Chassis ground enabled | JP1 | closed |
|---+--------------------------------+----------+------------|
| | Chassis ground disabled | JP1 | open |
|---+--------------------------------+----------+------------|
| » | Factory configured- Do not | JP2 | pins 1 & 2 |
| | alter | | closed |
|---+--------------------------------+----------+------------|
| » | Factory configured- Do not | JP3 | closed |
| | alter | | |
|---+--------------------------------+----------+------------|
| » | Factory configured- Do not | JP4 | pins 1 & 2 |
| | alter | | closed |
|---+--------------------------------+----------+------------|
| » | Factory configured- Do not | JP5 | open |
| | alter | | |
|---+--------------------------------+----------+------------|
| » | Factory configured- Do not | JP6 | closed |
| | alter | | |
|---+--------------------------------+----------+------------|
| » | Floppy drive enabled | JP7 | closed |
|---+--------------------------------+----------+------------|
| | Floppy drive disabled | JP7 | open |
|---+--------------------------------+----------+------------|
| » | Factory configured- Do not | JP8 | pins 1 & 2 |
| | alter | | closed |
|---+--------------------------------+----------+------------|
| » | Factory configured- Do not | JP9 | pins 2 & 3 |
| | alter | | closed |
+------------------------------------------------------------+
