# UNIDENTIFIED
GW2760WX SUPER I/O CARD
+------------------------------------------------------------+
|------------------------------------------------------------|
| Data bus: | 16-bit, ISA |
|-------------------+----------------------------------------|
| Size: | Half-length, full-height card |
|-------------------+----------------------------------------|
| Hard drive | Two IDE(AT) Interface drives |
| supported: | |
|-------------------+----------------------------------------|
| Floppy drives | Two 360KB, 720KB, 1.2MB, or 1.44MB |
| supported: | drives |
+------------------------------------------------------------+
IMG IMG 1
+------------------------------------------------------------+

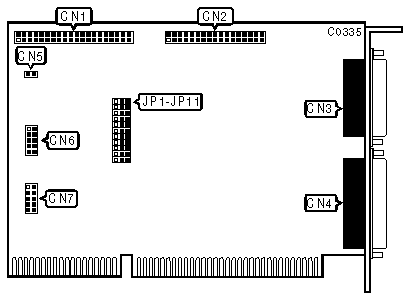

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|------------------------------------------------+-----------|
| 40-pin IDE(AT) Interface connector | CN1 |
|------------------------------------------------+-----------|
| 34-pin control cable connection - floppy drive | CN2 |
|------------------------------------------------+-----------|
| 15-pin game port - external | CN3 |
|------------------------------------------------+-----------|
| 25-pin parallel port (LPT1/2) - external | CN4 |
|------------------------------------------------+-----------|
| 2-pin connector - Drive Active LED | CN5 |
|------------------------------------------------+-----------|
| 10-pin serial port 1 (COM1/3) - internal | CN6 |
|------------------------------------------------+-----------|
| 10-pin serial port 2 (COM2/4) - internal | CN7 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|-------------------------------+----------+-----------------|
| » | Floppy drive enabled | JP1 | pins 2 & 3 |
| | | | closed |
|---+---------------------------+----------+-----------------|
| | Floppy drive disabled | JP1 | pins 1 & 2 |
| | | | closed |
|---+---------------------------+----------+-----------------|
| » | Hard drive enabled | JP2 | pins 2 & 3 |
| | | | closed |
|---+---------------------------+----------+-----------------|
| | Hard drive disabled | JP2 | pins 1 & 2 |
| | | | closed |
|---+---------------------------+----------+-----------------|
| » | Serial port 1 set to IRQ4 | JP9 | pins 2 & 3 |
| | | | closed |
|---+---------------------------+----------+-----------------|
| | Serial port 1 set to IRQ3 | JP9 | pins 1 & 2 |
| | | | closed |
|---+---------------------------+----------+-----------------|
| » | Serial port 2 set to IRQ3 | JP10 | pins 1 & 2 |
| | | | closed |
|---+---------------------------+----------+-----------------|
| | Serial port 2 set to IRQ4 | JP10 | pins 2 & 3 |
| | | | closed |
|---+---------------------------+----------+-----------------|
| » | Parallel port set to IRQ7 | JP11 | pins 1 & 2 |
| | | | closed |
|---+---------------------------+----------+-----------------|
| | Parallel port set to IRQ5 | JP11 | pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 1 CONFIGURATION |
|------------------------------------------------------------|
| COM | Jumper JP3 | Jumper JP4 |
|---------------------+-------------------+------------------|
| | Disabled | pins 1 & 2 closed | pins 1 & 2 |
| | | | closed |
|---+-----------------+-------------------+------------------|
| » | COM1 (3F8-3FFh) | pins 2 & 3 closed | pins 1 & 2 |
| | | | closed |
|---+-----------------+-------------------+------------------|
| | COM3 (3E8-3EFh) | pins 1 & 2 closed | pins 2 & 3 |
| | | | closed |
|---+-----------------+-------------------+------------------|
| | COM4 (2E8-2EFh) | pins 2 & 3 closed | pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 2 CONFIGURATION |
|------------------------------------------------------------|
| COM | Jumper JP5 | Jumper JP6 |
|---------------------+-------------------+------------------|
| | Disabled | pins 1 & 2 closed | pins 1 & 2 |
| | | | closed |
|---+-----------------+-------------------+------------------|
| » | COM2 (2F8-2FFh) | pins 2 & 3 closed | pins 1 & 2 |
| | | | closed |
|---+-----------------+-------------------+------------------|
| | COM4 (2E8-2EFh) | pins 1 & 2 closed | pins 2 & 3 |
| | | | closed |
|---+-----------------+-------------------+------------------|
| | COM3 (3E8-3EFh) | pins 2 & 3 closed | pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT CONFIGURATION |
|------------------------------------------------------------|
| LPT | Jumper JP7 | Jumper JP8 |
|---------------------+-------------------+------------------|
| | Disabled | pins 1 & 2 closed | pins 1 & 2 |
| | | | closed |
|---+-----------------+-------------------+------------------|
| | LPT3 (278-27Fh) | pins 2 & 3 closed | pins 1 & 2 |
| | | | closed |
|---+-----------------+-------------------+------------------|
| » | LPT2 (378-37Fh) | pins 1 & 2 closed | pins 2 & 3 |
| | | | closed |
|---+-----------------+-------------------+------------------|
| | LPT1 (3BC-3BFh) | pins 2 & 3 closed | pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
