# UNIDENTIFIED
6624UG SUPER I/O
+------------------------------------------------------------+
|------------------------------------------------------------|
| Data bus: | 16-bit, ISA |
|-------------------+----------------------------------------|
| Size: | Half-length, half-height card |
|-------------------+----------------------------------------|
| Hard drive | Two IDE(AT) Interface drives |
| supported: | |
|-------------------+----------------------------------------|
| Floppy drives | Two 360KB, 720KB, 1.2MB, or 1.44MB |
| supported: | drives |
+------------------------------------------------------------+

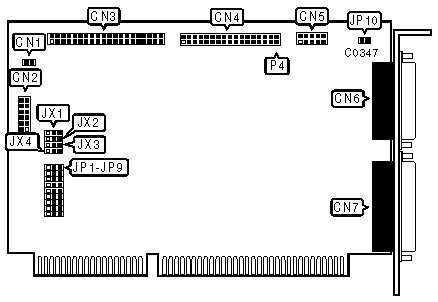

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|---------------------------------------------+--------------|
| 2-pin connector - Drive active LED | CN1 |
|---------------------------------------------+--------------|
| 16-pin game port - internal | CN2 |
|---------------------------------------------+--------------|
| 40-pin IDE(AT) Interface connector | CN3 |
|---------------------------------------------+--------------|
| 34-pin control cable connector-floppy drive | CN4 |
|---------------------------------------------+--------------|
| 10-pin serial port (COM2/4) - internal | CN5 |
|---------------------------------------------+--------------|
| 10-pin serial port (COM1/3) - external | CN6 |
|---------------------------------------------+--------------|
| 25-pin parallel port (LPT1/2) - external | CN7 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|------------------------------------+----------+------------|
| » | Game port enabled | JP1 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Game port disabled | JP1 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Hard drive enabled | JP2 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Hard drive disabled | JP2 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Floppy drive enabled | JP3 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Floppy drive disabled | JP3 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Serial Port 1 is set to COM1 | JP4 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Serial Port 1 is set to COM3 | JP4 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Serial Port 1 enabled | JP5 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Serial Port 1 disabled | JP5 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Serial Port 2 is set to COM2 | JP6 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Serial Port 2 is set to COM4 | JP6 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Serial Port 2 enabled | JP7 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Serial Port 2 disabled | JP7 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Parallel port is set to LPT2 | JP8 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Parallel port is set to LPT3 | JP8 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Parallel port enabled | JP9 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Parallel port disabled | JP9 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | I/O Channel Ready disabled | JP10 | open |
|---+--------------------------------+----------+------------|
| | I/O Channel Ready enabled | JP10 | closed |
|---+--------------------------------+----------+------------|
| » | Hard drive controller | JX1 | pins 1 & 2 |
| | installation installed | | closed |
|---+--------------------------------+----------+------------|
| | Hard drive controller | JX1 | pins 2 & 3 |
| | installation not installed | | closed |
|---+--------------------------------+----------+------------|
| | IDE drive mode is XT | JX2 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | IDE drive mode is AT | JX2 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Hard drive port address is | JX3 | pins 1 & 2 |
| | 1F0-1F7h | | closed |
|---+--------------------------------+----------+------------|
| | Hard drive port address is | JX3 | pins 2 & 3 |
| | 170-177h | | closed |
|---+--------------------------------+----------+------------|
| » | Floppy drive port address is | JX4 | pins 1 & 2 |
| | 3F0-3F7h | | closed |
|---+--------------------------------+----------+------------|
| | Floppy drive port address is | JX4 | pins 2 & 3 |
| | 370-377h | | closed |
+------------------------------------------------------------+
