# UNIDENTIFIED
AL-6076D
+------------------------------------------------------------+
|------------------------------------------------------------|
| Data bus: | 16-bit, ISA |
|-------------------+----------------------------------------|
| Size: | Half-length, half-height card |
|-------------------+----------------------------------------|
| Hard drive | Two IDE (AT) Interface drives |
| supported: | |
|-------------------+----------------------------------------|
| Floppy drives | Two 360KB, 720KB, 1.2MB, or 1.44MB |
| supported: | drives |
+------------------------------------------------------------+
IMG IMG 1
+------------------------------------------------------------+

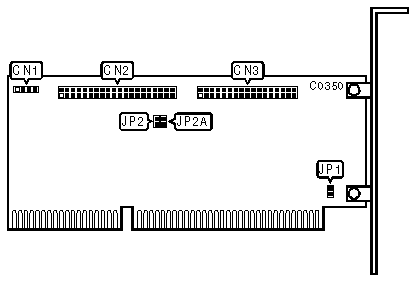

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|-----------------------------------------------+------------|
| 4-pin connector - Drive active LED | CN1 |
|-----------------------------------------------+------------|
| 2-pin connector - Ground | JP1 |
|-----------------------------------------------+------------|
| 40-pin IDE(AT) Interface connector | CN2 |
|-----------------------------------------------+------------|
| 34-pin control cable connector - floppy drive | CN3 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|-------------------------------+--------------+-------------|
| » | Hard drive enabled | JP2 | open |
|---+---------------------------+--------------+-------------|
| | Hard drive disabled | JP2 | closed |
|---+---------------------------+--------------+-------------|
| » | Floppy drive enabled | JP2A | open |
|---+---------------------------+--------------+-------------|
| | Floppy drive disabled | JP2A | closed |
+------------------------------------------------------------+
