# UNIDENTIFIED
SAI2S13 MULTI I/O PLUS
+------------------------------------------------------------+
|------------------------------------------------------------|
| Data bus: | 16-bit, ISA |
|-------------------+----------------------------------------|
| Size: | Half-length, half-height card |
|-------------------+----------------------------------------|
| Hard drive | Two IDE (AT) Interface drives |
| supported: | |
|-------------------+----------------------------------------|
| Floppy drives | Two 360KB, 720KB, 1.2MB, or 1.44MB |
| supported: | drives |
+------------------------------------------------------------+
IMG IMG 1
+------------------------------------------------------------+

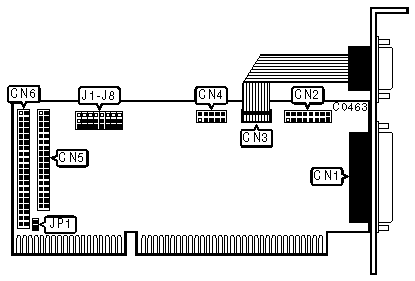

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|-----------------------------------------------+------------|
| 25-pin parallel port (LPT1/2) - external | CN1 |
|-----------------------------------------------+------------|
| 15-pin game port - internal | CN2 |
|-----------------------------------------------+------------|
| 10-pin serial port 1 (COM1/3) - external | CN3 |
|-----------------------------------------------+------------|
| 10-pin serial port 2 (COM2/4) - internal | CN4 |
|-----------------------------------------------+------------|
| 34-pin control cable connector - floppy drive | CN5 |
|-----------------------------------------------+------------|
| 40-pin IDE (AT) Interface connector | CN6 |
|-----------------------------------------------+------------|
| 2-pin connector - drive active LED | JP1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|------------------------------------+----------+------------|
| » | Hard drive enabled | J1 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Hard drive disabled | J1 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Floppy drive enabled | J2 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Floppy drive disabled | J2 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Serial Port 2 (CN4) enabled | J3 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Serial Port 2 (CN4) disabled | J3 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Serial Port 2 (CN4) is set to | J4 | pins 1 & 2 |
| | COM2 | | closed |
|---+--------------------------------+----------+------------|
| | Serial Port 2 (CN4) is set to | J4 | pins 2 & 3 |
| | COM4 | | closed |
|---+--------------------------------+----------+------------|
| » | Serial Port 1 (CN3) enabled | J5 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Serial Port 1 (CN3) disabled | J5 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Serial Port 1 (CN3) is set to | J6 | pins 1 & 2 |
| | COM1 | | closed |
|---+--------------------------------+----------+------------|
| | Serial Port 1 (CN3) is set to | J6 | pins 2 & 3 |
| | COM3 | | closed |
|---+--------------------------------+----------+------------|
| » | Parallel Port (CN1) enabled | J7 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Parallel Port (CN1) disabled | J7 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Parallel Port (CN1) is set to | J8 | pins 1 & 2 |
| | LPT1 | | closed |
|---+--------------------------------+----------+------------|
| | Parallel Port (CN1) is set to | J8 | pins 2 & 3 |
| | LPT2 | | closed |
+------------------------------------------------------------+
