# UNIDENTIFIED
PM-510-C
+------------------------------------------------------------+
| Q1/95 |
|------------------------------------------------------------|
| Data bus: | 16-bit, ISA |
|-------------------+----------------------------------------|
| Size: | Half-length, half-height card |
|-------------------+----------------------------------------|
| Hard drive | Two IDE (AT) interface drives |
| supported: | |
|-------------------+----------------------------------------|
| Floppy drives | Two 360KB, 720KB, 1.2MB, or 1.44MB |
| supported: | drives |
+------------------------------------------------------------+
IMG IMG 1
+------------------------------------------------------------+

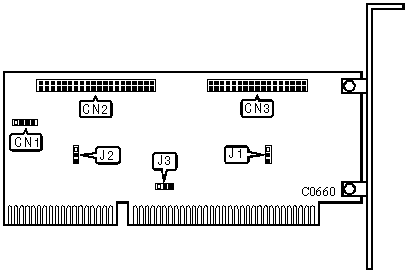

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|-----------------------------------------------+------------|
| 4-pin connector - drive active LED | CN1 |
|-----------------------------------------------+------------|
| 40-pin IDE (AT) Interface connector | CN2 |
|-----------------------------------------------+------------|
| 34-pin control cable connector - floppy drive | CN3 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|------------------------------------+----------+------------|
| » | Floppy drive enabled | J1 | Pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Floppy drive disabled | J1 | Pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | HDD enabled | J2 | Pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | HDD disabled | J2 | Pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Standard I/O check ready | J3 | Pins 1 & 2 |
| | signal | | closed |
|---+--------------------------------+----------+------------|
| | Delayed I/O check ready signal | j3 | Pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
