# UNIDENTIFIED
SUPER I/O CARD FOR 286/386/486
+------------------------------------------------------------+
|------------------------------------------------------------|
| Data bus: | 16-bit, ISA |
|-------------------+----------------------------------------|
| Size: | Half-length, half-height card |
|-------------------+----------------------------------------|
| Hard drive | Two IDE (AT) Interface drives |
| supported: | |
|-------------------+----------------------------------------|
| Floppy drives | Two 360KB, 720KB, 1.2MB, or 1.44MB |
| supported: | drives |
+------------------------------------------------------------+
IMG IMG 1
+------------------------------------------------------------+

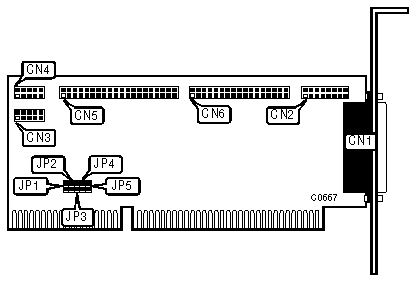

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|--------------------------------------------+---------------|
| 25-pin parallel port (LPT1/2) - external | CN1 |
|--------------------------------------------+---------------|
| 16-pin game port - external | CN2 |
|--------------------------------------------+---------------|
| 10-pin serial port (COM1/3) - internal | CN3 |
|--------------------------------------------+---------------|
| 10-pin serial port (COM2/4) - internal | CN4 |
|--------------------------------------------+---------------|
| 40-pin IDE (AT) Interface connector | CN5 |
|--------------------------------------------+---------------|
| 34-pin control cable connector - floppy | CN6 |
| drive | |
|--------------------------------------------+---------------|
| Drive active LED connector | Location |
| | Unidentified |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|-------------------------------------+-----------+----------|
| » | Floppy disk drive - enabled | JP1 | open |
|---+---------------------------------+-----------+----------|
| | Floppy disk drive - disabled | JP1 | closed |
|---+---------------------------------+-----------+----------|
| » | Hard disk drive - enabled | JP2 | open |
|---+---------------------------------+-----------+----------|
| | Hard disk drive - disabled | JP2 | closed |
|---+---------------------------------+-----------+----------|
| » | Serial port 1 (3F8-3FFh/COM1) | JP3 | open |
|---+---------------------------------+-----------+----------|
| | Serial port 1 (3E8-3EFh/COM3) | JP3 | closed |
|---+---------------------------------+-----------+----------|
| » | Serial port 2 (2F8-2FFh/COM2) | JP4 | open |
|---+---------------------------------+-----------+----------|
| | Serial port 2 (2E8-2EFh/COM4) | JP4 | closed |
|---+---------------------------------+-----------+----------|
| » | Parallel port (378-37Fh/LPT2) | JP5 | open |
|---+---------------------------------+-----------+----------|
| | Parallel port (278-27Fh/LPT3) | JP5 | closed |
+------------------------------------------------------------+
