       # ATLANTIC COMPUTER PRODUCTS, INC.

          GP4530

          +------------------------------------------------------------+
          |------------------------------------------------------------|
          | Data bus:     | 32-bit, VL-bus                             |
          |---------------+--------------------------------------------|
          | Size:         | Three/quarter-length, full-height card     |
          |---------------+--------------------------------------------|
          | Hard drive    | Two IDE (AT) interface drives              |
          | supported:    |                                            |
          |---------------+--------------------------------------------|
          | Floppy drives | Two 360KB, 720KB, 1.2MB, 1.44MB, or 2.88MB |
          | supported:    | drives                                     |
          +------------------------------------------------------------+

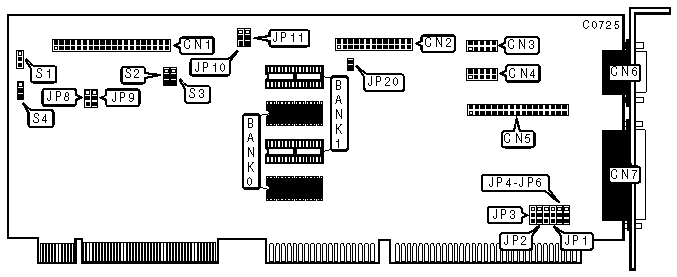

   IMG IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |                   Function                    |  Location  |
          |-----------------------------------------------+------------|
          | 40-pin IDE (AT) Interface connector           |    CN1     |
          |-----------------------------------------------+------------|
          | VGA feature connector                         |    CN2     |
          |-----------------------------------------------+------------|
          | 10-pin serial port 2                          |    CN3     |
          |-----------------------------------------------+------------|
          | 10-pin serial port 1                          |    CN4     |
          |-----------------------------------------------+------------|
          | 34-pin control cable connector - floppy drive |    CN5     |
          |-----------------------------------------------+------------|
          | 15-pin analog video connector                 |    CN6     |
          |-----------------------------------------------+------------|
          | 25-pin parallel port                          |    CN7     |
          |-----------------------------------------------+------------|
          | "Green Feature" connector                     |    JP20    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |          Function           | Location |      Setting      |
          |-----------------------------+----------+-------------------|
          | » | Factory configured - do |   JP3    | pins 2 & 3 closed |
          |   | not alter               |          |                   |
          |---+-------------------------+----------+-------------------|
          | » | Parallel port used for  |   JP6    | pins 1 & 2 closed |
          |   | printer                 |          |                   |
          |---+-------------------------+----------+-------------------|
          |   | Parallel port used for  |   JP6    | pins 2 & 3 closed |
          |   | scanner                 |          |                   |
          |---+-------------------------+----------+-------------------|
          | » | IDE port enabled        |    S1    | pins 1 & 2 closed |
          |---+-------------------------+----------+-------------------|
          |   | IDE port disabled       |    S1    | pins 2 & 3 closed |
          |---+-------------------------+----------+-------------------|
          | » | Factory configured - do |    S2    | pins 2 & 3 closed |
          |   | not alter               |          |                   |
          |---+-------------------------+----------+-------------------|
          | » | Factory configured - do |    S3    | pins 1 & 2 closed |
          |   | not alter               |          |                   |
          |---+-------------------------+----------+-------------------|
          | » | Factory configured - do |    S4    | pins 1 & 2 closed |
          |   | not alter               |          |                   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                  I/O PORTS CONFIGURATION                   |
          |------------------------------------------------------------|
          |  Floppy  |Serial 1|Serial 2|Parallel| JP1 | JP2 | JP4 |JP5 |
          |----------+--------+--------+--------+-----+-----+-----+----|
          |»|Enabled |  COM1  |  COM2  |  LPT1  |1 & 2|1 & 2|2 & 3|1 & |
          | |        |        |        |        |     |     |     | 2  |
          |-+--------+--------+--------+--------+-----+-----+-----+----|
          | |Enabled |  COM1  |  COM2  |  LPT2  |2 & 3|1 & 2|2 & 3|1 & |
          | |        |        |        |        |     |     |     | 2  |
          |-+--------+--------+--------+--------+-----+-----+-----+----|
          | |Enabled |  COM3  |  COM4  |  LPT2  |1 & 2|2 & 3|2 & 3|1 & |
          | |        |        |        |        |     |     |     | 2  |
          |-+--------+--------+--------+--------+-----+-----+-----+----|
          | |Enabled |  COM2  |  COM3  |  LPT1  |2 & 3|2 & 3|2 & 3|1 & |
          | |        |        |        |        |     |     |     | 2  |
          |-+--------+--------+--------+--------+-----+-----+-----+----|
          | |Disabled|  COM1  |  COM2  |  LPT1  |1 & 2|1 & 2|1 & 2|2 & |
          | |        |        |        |        |     |     |     | 3  |
          |-+--------+--------+--------+--------+-----+-----+-----+----|
          | |Disabled|  COM1  |  COM2  |  LPT2  |2 & 3|1 & 2|1 & 2|2 & |
          | |        |        |        |        |     |     |     | 3  |
          |-+--------+--------+--------+--------+-----+-----+-----+----|
          | |Disabled|  COM3  |  COM4  |  LPT2  |1 & 2|2 & 3|1 & 2|2 & |
          | |        |        |        |        |     |     |     | 3  |
          |-+--------+--------+--------+--------+-----+-----+-----+----|
          | |Disabled|  COM2  |  COM3  |  LPT1  |2 & 3|2 & 3|1 & 2|2 & |
          | |        |        |        |        |     |     |     | 3  |
          |-+--------+--------+--------+--------+-----+-----+-----+----|
          | |Enabled |Disabled|Disabled|Disabled|1 & 2|2 & 3|2 & 3|2 & |
          | |        |        |        |        |     |     |     | 3  |
          |-+--------+--------+--------+--------+-----+-----+-----+----|
          | |Disabled|Disabled|Disabled|Disabled|2 & 3|2 & 3|2 & 3|2 & |
          | |        |        |        |        |     |     |     | 3  |
          |------------------------------------------------------------|
          |Note:The pins indicated are in the closed position.         |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                         WAIT STATE                         |
          |------------------------------------------------------------|
          |        Setting        |       JP8        |       JP9       |
          |-----------------------+------------------+-----------------|
          | » |   Wait State 2    |    pins 2 & 3    |   pins 2 & 3    |
          |   |      enabled      |      closed      |     closed      |
          |---+-------------------+------------------+-----------------|
          |   |   Wait State 1    |    pins 2 & 3    |   pins 1 & 2    |
          |   |      enabled      |      closed      |     closed      |
          |---+-------------------+------------------+-----------------|
          |   |   Wait State 3    |    pins 1 & 2    |   pins 2 & 3    |
          |   |      enabled      |      closed      |     closed      |
          |---+-------------------+------------------+-----------------|
          |   |   Wait State 4    |    pins 1 & 2    |   pins 1 & 2    |
          |   |      enabled      |      closed      |     closed      |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 VIDEO MEMORY CONFIGURATION                 |
          |------------------------------------------------------------|
          |  Memory  |     JP10     |    JP11    |  Bank 0  |  Bank 1  |
          |   Size   |              |            |          |          |
          |----------+--------------+------------+----------+----------|
          | » | 1MB  |  pins 2 & 3  | pins 1 & 2 | (2) 512K |   None   |
          |   |      |    closed    |   closed   |   x 8    |          |
          |---+------+--------------+------------+----------+----------|
          |   | 2MB  |  pins 2 & 3  | pins 2 & 3 | (2) 512K | (2) 512K |
          |   |      |    closed    |   closed   |   x 8    |   x 8    |
          +------------------------------------------------------------+
