# UNIDENTIFIED
UMC VESA IDE
+------------------------------------------------------------+
|------------------------------------------------------------|
| Data bus: | 32-bit, VL-bus |
|-------------------+----------------------------------------|
| Size: | Three/quarter-length, half-height card |
|-------------------+----------------------------------------|
| Hard drive | Two IDE (AT) Interface drives |
| supported: | |
|-------------------+----------------------------------------|
| Floppy drives | Two 360KB, 720KB, 1.2MB, or 1.44MB |
| supported: | drives |
+------------------------------------------------------------+

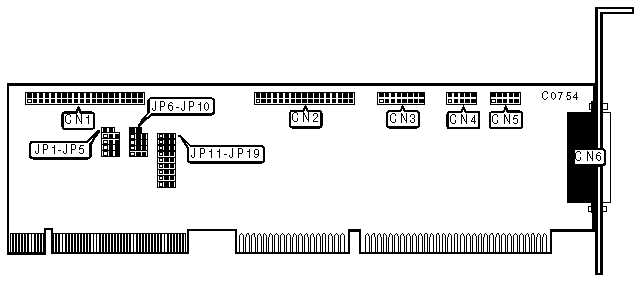

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|-----------------------------------------------+------------|
| 40-pin IDE(AT) Interface connector | CN1 |
|-----------------------------------------------+------------|
| 2-pin connector - drive active LED | JP6 |
|-----------------------------------------------+------------|
| 34-pin control cable connector - floppy drive | CN2 |
|-----------------------------------------------+------------|
| 15-pin game port | CN3 |
|-----------------------------------------------+------------|
| 10-pin serial port 1 | CN4 |
|-----------------------------------------------+------------|
| 10-pin serial port 2 | CN5 |
|-----------------------------------------------+------------|
| 25-pin parallel port | CN6 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|------------------------------------+----------+------------|
| » | Factory configured - do not | JP1 | n/a |
| | alter | | |
|---+--------------------------------+----------+------------|
| » | Factory configured - do not | JP2 | pins 2 & 3 |
| | alter | | closed |
|---+--------------------------------+----------+------------|
| » | IDE port enabled | JP7 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | IDE port disabled | JP7 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Factory configured - do not | JP12 | pins 2 & 3 |
| | alter | | closed |
|---+--------------------------------+----------+------------|
| » | Floppy drive enabled | JP16 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Floppy drive disabled | JP16 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Game port enabled | JP19 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Game port disabled | JP19 | pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| IDE ACTIVE TIME |
|------------------------------------------------------------|
| Setting | JP3 | JP4 | JP5 |
|---------+----------------+----------------+----------------|
| » | 10 | pins 1 & 2 | pins 1 & 2 | pins 1 & 2 |
| | | closed | closed | closed |
|----+----+----------------+----------------+----------------|
| | 9 | pins 1 & 2 | pins 1 & 2 | pins 2 & 3 |
| | | closed | closed | closed |
|----+----+----------------+----------------+----------------|
| | 8 | pins 1 & 2 | pins 2 & 3 | pins 1 & 2 |
| | | closed | closed | closed |
|----+----+----------------+----------------+----------------|
| | 7 | pins 1 & 2 | pins 2 & 3 | pins 2 & 3 |
| | | closed | closed | closed |
|----+----+----------------+----------------+----------------|
| | 6 | pins 2 & 3 | pins 1 & 2 | pins 1 & 2 |
| | | closed | closed | closed |
|----+----+----------------+----------------+----------------|
| | 5 | pins 2 & 3 | pins 1 & 2 | pins 2 & 3 |
| | | closed | closed | closed |
|----+----+----------------+----------------+----------------|
| | 4 | pins 2 & 3 | pins 2 & 3 | pins 1 & 2 |
| | | closed | closed | closed |
|----+----+----------------+----------------+----------------|
| | 3 | pins 2 & 3 | pins 2 & 3 | pins 2 & 3 |
| | | closed | closed | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| IDE RECOVERY TIME |
|------------------------------------------------------------|
| Setting | JP8 | JP9 | JP10 |
|---------+----------------+----------------+----------------|
| » | 19 | pins 1 & 2 | pins 1 & 2 | pins 1 & 2 |
| | | closed | closed | closed |
|----+----+----------------+----------------+----------------|
| | 17 | pins 1 & 2 | pins 1 & 2 | pins 2 & 3 |
| | | closed | closed | closed |
|----+----+----------------+----------------+----------------|
| | 15 | pins 1 & 2 | pins 2 & 3 | pins 1 & 2 |
| | | closed | closed | closed |
|----+----+----------------+----------------+----------------|
| | 13 | pins 1 & 2 | pins 2 & 3 | pins 2 & 3 |
| | | closed | closed | closed |
|----+----+----------------+----------------+----------------|
| | 11 | pins 2 & 3 | pins 1 & 2 | pins 1 & 2 |
| | | closed | closed | closed |
|----+----+----------------+----------------+----------------|
| | 9 | pins 2 & 3 | pins 1 & 2 | pins 2 & 3 |
| | | closed | closed | closed |
|----+----+----------------+----------------+----------------|
| | 7 | pins 2 & 3 | pins 2 & 3 | pins 1 & 2 |
| | | closed | closed | closed |
|----+----+----------------+----------------+----------------|
| | 5 | pins 2 & 3 | pins 2 & 3 | pins 2 & 3 |
| | | closed | closed | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT CONFIGURATION |
|------------------------------------------------------------|
| LPT/Address | JP11 | JP17 |
|------------------+--------------------+--------------------|
| » | LPT2/378h | pins 1 & 2 closed | pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| | LPT3/278h | pins 1 & 2 closed | pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| | Disabled | pins 2 & 3 closed | n/a |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 1 CONFIGURATION |
|------------------------------------------------------------|
| COM/Address | JP13 | JP14 |
|------------------+--------------------+--------------------|
| » | COM1/3F8h | pins 1 & 2 closed | pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| | COM3/3E8h | pins 1 & 2 closed | pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| | Disabled | pins 2 & 3 closed | n/a |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 2 CONFIGURATION |
|------------------------------------------------------------|
| COM/Address | JP15 | JP18 |
|------------------+--------------------+--------------------|
| » | COM2/2F8h | pins 1 & 2 closed | pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| | COM4/2E8h | pins 1 & 2 closed | pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| | Disabled | pins 2 & 3 closed | n/a |
+------------------------------------------------------------+
