# UNIDENTIFIED
KT-IDE PLUS-V1(VER. 2)
+------------------------------------------------------------+
|------------------------------------------------------------|
| Data bus: | 16-bit, ISA |
|-------------------+----------------------------------------|
| Size: | Half-length, full-height card |
|-------------------+----------------------------------------|
| Hard drive | Two IDE(AT) Interface drives |
| supported: | |
|-------------------+----------------------------------------|
| Floppy drives | Two 360KB, 720KB, 1.2MB, or 1.44MB |
| supported: | drives |
+------------------------------------------------------------+
IMG IMG 1
+------------------------------------------------------------+

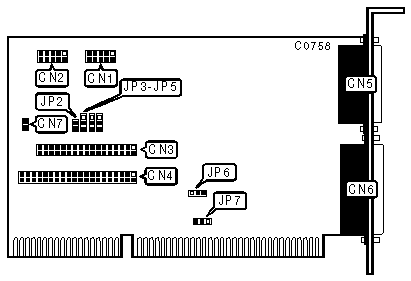

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|------------------------------------------------+-----------|
| 10-pin serial port 1 - internal | CN1 |
|------------------------------------------------+-----------|
| 10-pin serial port 2 - internal | CN2 |
|------------------------------------------------+-----------|
| 34-pin control cable connection - floppy drive | CN3 |
|------------------------------------------------+-----------|
| 40-pin IDE(AT) Interface connector | CN4 |
|------------------------------------------------+-----------|
| Game port | CN5 |
|------------------------------------------------+-----------|
| Parallel port | CN6 |
|------------------------------------------------+-----------|
| 2-pin connector - drive active LED | CN7 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|------------------------------------+----------+------------|
| » | Game port enabled | JP2 | closed |
|---+--------------------------------+----------+------------|
| | Game port disabled | JP2 | open |
|---+--------------------------------+----------+------------|
| » | Factory configured - do not | JP6 | pins 1 & 2 |
| | alter | | closed |
|---+--------------------------------+----------+------------|
| » | Parallel port IRQ7 selected | JP7 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Parallel port IRQ5 selected | JP7 | pins 1 & 2 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT CONFIGURATION |
|------------------------------------------------------------|
| LPT/Address | JP3 |
|----------------------------+-------------------------------|
| » | LPT1/378h | pins 2 & 3 closed |
|---+------------------------+-------------------------------|
| | LPT2/278h | pins 1 & 2 closed |
|---+------------------------+-------------------------------|
| | Disabled | all pins open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 1 CONFIGURATION |
|------------------------------------------------------------|
| COM/Address | JP5 |
|----------------------------+-------------------------------|
| » | COM1/3F8h | pins 2 & 3 closed |
|---+------------------------+-------------------------------|
| | COM3/3E8h | pins 1 & 2 closed |
|---+------------------------+-------------------------------|
| | Disabled | all pins open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 2 CONFIGURATION |
|------------------------------------------------------------|
| COM/Address | JP4 |
|----------------------------+-------------------------------|
| » | COM2/2F8h | pins 2 & 3 closed |
|---+------------------------+-------------------------------|
| | COM4/2E8h | pins 1 & 2 closed |
|---+------------------------+-------------------------------|
| | Disabled | all pins open |
+------------------------------------------------------------+
