# UNIDENTIFIED
IODE-3292PUV
+------------------------------------------------------------+
|------------------------------------------------------------|
| Data bus: | 32-bit, VL-bus |
|-------------------+----------------------------------------|
| Size: | Half-length, half-height card |
|-------------------+----------------------------------------|
| Hard drive | Two IDE (AT) Interface drives |
| supported: | |
|-------------------+----------------------------------------|
| Floppy drives | Two 360KB, 720KB, 1.2MB, or 1.44MB |
| supported: | drives |
+------------------------------------------------------------+
IMG IMG 1
+------------------------------------------------------------+

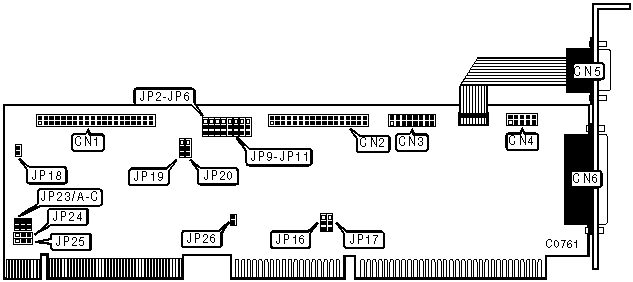

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|-----------------------------------------------+------------|
| 40-pin IDE(AT) Interface connector | CN1 |
|-----------------------------------------------+------------|
| 34-pin control cable connector - floppy drive | CN2 |
|-----------------------------------------------+------------|
| Game port | CN3 |
|-----------------------------------------------+------------|
| 10-pin serial port 2 - internal | CN4 |
|-----------------------------------------------+------------|
| 9-pin serial port 1 - external | CN5 |
|-----------------------------------------------+------------|
| 25-pin parallel port | CN6 |
|-----------------------------------------------+------------|
| 2-pin connector - drive active LED | JP18 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|------------------------------------+----------+------------|
| » | Floppy drive enabled | JP2 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Floppy drive disabled | JP2 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Game Port enabled | JP6 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Game Port disabled | JP6 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Serial port 1 interrupt = IRQ4 | JP16 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Serial port 1 interrupt = IRQ3 | JP16 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Serial Port 2 interrupt = IRQ3 | JP17 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Serial Port 2 interrupt = IRQ4 | JP17 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Local bus device synchronous | JP23/A-C | jumper A |
| | mode selected | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|------------------------------------+----------+------------|
| | Local bus device asynchronous | JP23/A-C | jumper B |
| | mode 1 selected | | closed |
|---+--------------------------------+----------+------------|
| | Local bus device asynchronous | JP23/A-C | jumper C |
| | mode 2 selected | | closed |
|---+--------------------------------+----------+------------|
| | ADS synchronous mode selected | JP24 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | ADS asynchronous mode selected | JP24 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Local bus clock synchronous | JP25 | pins 1 & 2 |
| | mode selected | | closed |
|---+--------------------------------+----------+------------|
| | Local bus clock asynchronous | JP25 | pins 2 & 3 |
| | mode selected | | closed |
|---+--------------------------------+----------+------------|
| » | Factory configured - do not | JP26 | closed |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT CONFIGURATION |
|------------------------------------------------------------|
| LPT/Address | JP3 | JP9 |
|------------------+--------------------+--------------------|
| » | LPT1/378h | pins 1 & 2 closed | pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| | LPT2/278h | pins 1 & 2 closed | pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| | Disabled | pins 2 & 3 closed | n/a |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 1 CONFIGURATION |
|------------------------------------------------------------|
| COM/Address | JP4 | JP10 |
|------------------+--------------------+--------------------|
| » | COM1/3F8h | pins 1 & 2 closed | pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| | COM3/3E8h | pins 1 & 2 closed | pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| | Disabled | pins 2 & 3 closed | n/a |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 2 CONFIGURATION |
|------------------------------------------------------------|
| COM/Address | JP5 | JP11 |
|------------------+--------------------+--------------------|
| » | COM2/2F8h | pins 1 & 2 closed | pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| | COM4/2E8h | pins 1 & 2 closed | pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| | Disabled | pins 2 & 3 closed | n/a |
+------------------------------------------------------------+
+------------------------------------------------------------+
| HARD DRIVE SPEED |
|------------------------------------------------------------|
| Setting | JP19 | JP20 |
|--------------------+-------------------+-------------------|
| » | Speed 0 | pins 1 & 2 closed | pins 1 & 2 closed |
|---+----------------+-------------------+-------------------|
| | Speed 1 | pins 2 & 3 closed | pins 1 & 2 closed |
|---+----------------+-------------------+-------------------|
| | Speed 2 | pins 2 & 3 closed | pins 2 & 3 closed |
+------------------------------------------------------------+
