# UNIDENTIFIED
KING PUZZLE SUPER I/O CARD
+------------------------------------------------------------+
|------------------------------------------------------------|
| Data bus: | 16-bit, ISA/32-Bit VL-Bus |
|---------------+--------------------------------------------|
| Size: | Half-length, half-height card (3/4 with |
| | daughter board) |
|---------------+--------------------------------------------|
| Hard drive | Two IDE(AT) interface drives |
| supported: | |
|---------------+--------------------------------------------|
| Floppy drives | Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
| supported: | |
+------------------------------------------------------------+
IMG IMG 1
+------------------------------------------------------------+

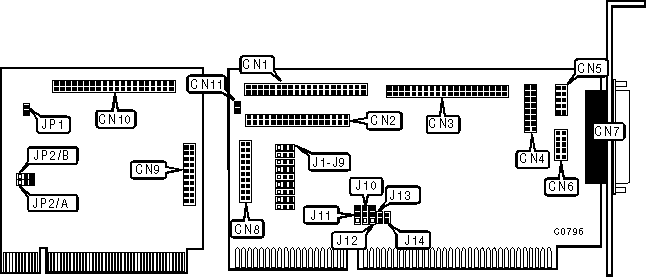

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|--------------------------------------------+---------------|
| 40-pin ISA IDE(AT) connector | CN1 |
|--------------------------------------------+---------------|
| 34-pin floppy drive connector | CN2 |
|--------------------------------------------+---------------|
| 40-pin security/anti-virus connector | CN3 |
|--------------------------------------------+---------------|
| 16-pin game port | CN4 |
|--------------------------------------------+---------------|
| 10-pin serial port 1 - internal | CN5 |
|--------------------------------------------+---------------|
| 10-pin serial port 2 - internal | CN6 |
|--------------------------------------------+---------------|
| 25-pin parallel port - external | CN7 |
|--------------------------------------------+---------------|
| 20-pin VL-ISA connector | CN8 & CN9 |
|--------------------------------------------+---------------|
| 40-pin VL IDE(AT) connector | CN10 |
|--------------------------------------------+---------------|
| 2-pin connector - ISA-IDE drive active LED | CN11 |
|--------------------------------------------+---------------|
| 2-pin connector - VL-IDE drive active LED | JP1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|------------------------------------+-------------+---------|
| » | IDE interface enabled | J1/pins 2 & | closed |
| | | 3 | |
|---+--------------------------------+-------------+---------|
| | IDE interface disabled | J1/pins 1 & | closed |
| | | 2 | |
|---+--------------------------------+-------------+---------|
| » | Floppy drive enabled | J2/pins 2 & | closed |
| | | 3 | |
|---+--------------------------------+-------------+---------|
| | Floppy drive disabled | J2/pins 1 & | closed |
| | | 2 | |
|---+--------------------------------+-------------+---------|
| » | Floppy drives order is A:, B: | J3/pins 2 & | closed |
| | | 3 | |
|---+--------------------------------+-------------+---------|
| | Floppy drives order is B:, A: | J3/pins 1 & | closed |
| | | 2 | |
|---+--------------------------------+-------------+---------|
| » | Serial port 1 IRQ4 select | J10/pins 2 | closed |
| | | & 3 | |
|---+--------------------------------+-------------+---------|
| | Serial port 1 IRQ3 select | J10/pins 1 | closed |
| | | & 2 | |
|---+--------------------------------+-------------+---------|
| » | Serial port 2 IRQ3 select | J11/pins 2 | closed |
| | | & 3 | |
|---+--------------------------------+-------------+---------|
| | Serial port 2 IRQ4 select | J11/pins 1 | closed |
| | | & 2 | |
|---+--------------------------------+-------------+---------|
| » | Parallel port IRQ7 select | J12/pins 1 | closed |
| | | & 2 | |
|---+--------------------------------+-------------+---------|
| | Parallel port IRQ5 select | J12/pins 2 | select |
| | | & 3 | |
|---+--------------------------------+-------------+---------|
| » | Game port enabled | J13 | closed |
|---+--------------------------------+-------------+---------|
| | Game port disabled | J13 | open |
|---+--------------------------------+-------------+---------|
| » | Parallel port is | J14 | closed |
| | uni-directional | | |
|---+--------------------------------+-------------+---------|
| | Parallel port is | J14 | open |
| | bi-directional | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 1 CONFIGURATION |
|------------------------------------------------------------|
| Address | J4 | J5 |
|------------------+--------------------+--------------------|
| » | 3F8h (COM1) | pins 2 & 3 closed | pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| | 3E8h (COM3) | pins 1 & 2 closed | pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| | Disabled | pins 1 & 2 closed | pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 2 CONFIGURATION |
|------------------------------------------------------------|
| Address | J6 | J7 |
|------------------+--------------------+--------------------|
| » | 2F8h (COM2) | pins 2 & 3 closed | pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| | 2E8h (COM4) | pins 1 & 2 closed | pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| | Disabled | pins 1 & 2 closed | pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT CONFIGURATION |
|------------------------------------------------------------|
| Address | J8 | J9 |
|------------------+--------------------+--------------------|
| » | 378h (LPT2) | pins 1 & 2 closed | pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| | 278h (LPT3) | pins 2 & 3 closed | pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| | 3BCh (LPT1) | pins 2 & 3 closed | pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| | Disabled | pins 1 & 2 closed | pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VL-IDE DRIVE SPEED CONFIGURATION |
|------------------------------------------------------------|
| Speed | JP2/A | JP2/B |
|------------------+--------------------+--------------------|
| Speed 0 | pins 1 & 2 closed | pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| Speed 1 | pins 2 & 3 closed | pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| Speed 2 | pins 1 & 2 closed | pins 2 & 3 closed |
|------------------+--------------------+--------------------|
| Speed 3 | pins 2 & 3 closed | pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS NOTES |
|------------------------------------------------------------|
| Jumper settings do not affect the VL-IDE controller. |
| |
| When using the ISA-IDE controller the VL-IDE daughter |
| board must be disconnect. When using the |
| |
| VL-IDE connector it is not necessary to disable the |
| ISA-IDE |
+------------------------------------------------------------+
