# UNITED MICROELECTRONICS CORPORATION
FSIOL-UC2.1C
+------------------------------------------------------------+
|------------------------------------------------------------|
| Data bus: | 32-bit, VL-Bus |
|-------------------+----------------------------------------|
| Size: | Three quarter-length, half-height card |
|-------------------+----------------------------------------|
| Hard drive | Two IDE (AT) interface drives |
| supported: | |
|-------------------+----------------------------------------|
| Floppy drives | 360KB, 720KB, 1.2MB, or 1.44MB drives |
| supported: | |
+------------------------------------------------------------+

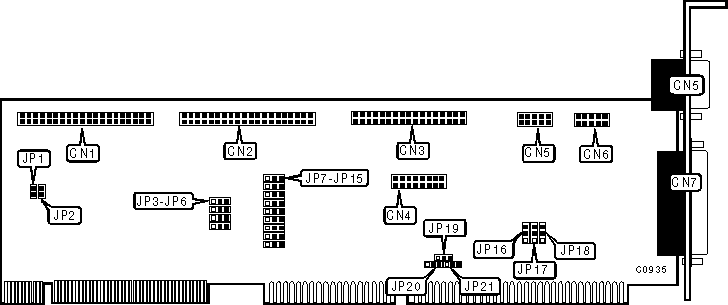

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|-------------------------------------------------+----------|
| 40-pin primary IDE(AT) interface | CN1 |
|-------------------------------------------------+----------|
| 40-pin secondary IDE(AT) interface | CN2 |
|-------------------------------------------------+----------|
| 34-pin control cable connector - floppy drive | CN3 |
|-------------------------------------------------+----------|
| 16-pin Game port | CN4 |
|-------------------------------------------------+----------|
| 9-pin serial port 1 - external, 10-pin serial | CN5 |
| port 1 - internal | |
|-------------------------------------------------+----------|
| 10-pin serial port 2 - internal | CN6 |
|-------------------------------------------------+----------|
| 25-pin parallel port | CN7 |
|-------------------------------------------------+----------|
| 2-pin drive active LED for primary IDE | JP1 |
|-------------------------------------------------+----------|
| 2-pin drive active LED for secondary IDE | JP2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU CLOCK CONFIGURATION |
|------------------------------------------------------------|
| CPU Clock | JP3 | JP4 |
|----------------------+------------------+------------------|
| 40/50 MHz | open | open |
|----------------------+------------------+------------------|
| Below 20 MHz or | open | closed |
| | | |
| Enhanced IDE support | | |
|----------------------+------------------+------------------|
| 25/33 MHz | closed | open |
|----------------------+------------------+------------------|
| Under 40 MHz or | closed | closed |
| | | |
| Non-ATA support | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|------------------------------------+----------+------------|
| » | Primary IDE interface enabled | JP5 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Primary IDE interface disabled | JP5 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Secondary IDE interface | JP6 | pins 1 & 2 |
| | enabled | | closed |
|---+--------------------------------+----------+------------|
| | Secondary IDE interface | JP6 | pins 2 & 3 |
| | disabled | | closed |
|---+--------------------------------+----------+------------|
| » | Floppy drive interface enabled | JP9 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Floppy drive interface | JP9 | pins 2 & 3 |
| | disabled | | closed |
|---+--------------------------------+----------+------------|
| » | Parallel port is LPT2 | JP14 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Parallel port is LPT3 | JP14 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Game port enabled | JP15 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | Game port disabled | JP15 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Factory configured - do not | JP16 | N/A |
| | alter | | |
|---+--------------------------------+----------+------------|
| » | Factory configured - do not | JP17 | N/A |
| | alter | | |
|---+--------------------------------+----------+------------|
| » | Factory configured - do not | JP18 | N/A |
| | alter | | |
|---+--------------------------------+----------+------------|
| » | Factory configured - do not | JP19 | N/A |
| | alter | | |
|---+--------------------------------+----------+------------|
| » | Factory configured - do not | JP20 | N/A |
| | alter | | |
|---+--------------------------------+----------+------------|
| » | Factory configured - do not | JP21 | N/A |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT MODE CONFIGURATION |
|------------------------------------------------------------|
| MODE | JP7 | JP8 |
|----------------------+------------------+------------------|
| » | Standard printer | pins 1 & 2 | pins 2 & 3 |
| | | closed | closed |
|---+------------------+------------------+------------------|
| | ECP / EPP | N/A | N/A |
|---+------------------+------------------+------------------|
| | Disabled | pins 2 & 3 | pins 2 & 3 |
| | | closed | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 1 CONFIGURATION |
|------------------------------------------------------------|
| COM | JP10 | JP11 |
|------------------+--------------------+--------------------|
| » | COM1 | pins 1 & 2 closed | pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| | COM3 | pins 1 & 2 closed | pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| | Disabled | pins 2 & 3 closed | N/A |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 2 CONFIGURATION |
|------------------------------------------------------------|
| COM | JP12 | JP13 |
|------------------+--------------------+--------------------|
| » | COM2 | pins 1 & 2 closed | pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| | COM4 | pins 1 & 2 closed | pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| | Disabled | pins 2 & 3 closed | N/A |
+------------------------------------------------------------+
